High TG Value Quick Turn PCB Boards TG170 Fast Prototype PCB Immersion Gold 2u
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | TG170 Fast Prototype PCB | Marterial | FR4 TG170 |
|---|---|---|---|
| Surface Finished | Immersion Gold 2u | Board Thickness | 1.6MM |
| Copper Thickness | 1/1/1/1OZ Finished | Min. Line Distance/space | 6/6mil |
| Solder Mask | KSM Green | Smallest Mechanical Drilling Hole | 0.25mm |
| Special Requirement | Impedance Contro/0.25mm BGA | Applicationcommunications Products | Industrial Control |
| High Light | 2u Quick Turn PCB Boards,High TG Quick Turn PCB Boards,TG170 Fast Prototype PCB |
||
Product Description

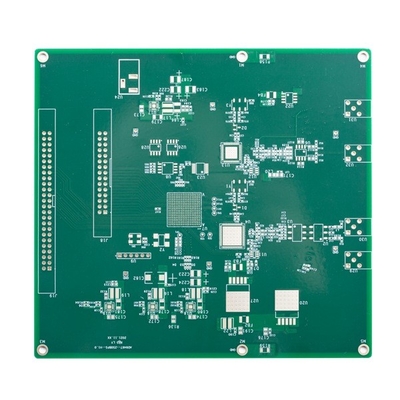

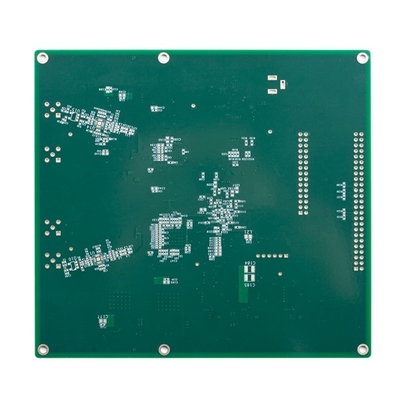

High TG Value Quick Turn PCB Boards TG170 Fast Prototype PCB Immersion Gold 2u
Quick Turn PCB Boards High TG Value PCB Fast PCB Quick Turn Printed Circuit Boards Fast Prototype PCB
4L Quick Turn TG170 Printed Circuit Board
The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.
The Minimum panel size is 5 * 5mm.
Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...
Blind and buried holes lamination press times: Press with same core ≤3times (>3 times needs to review)
PCB thickness capability is from 0.2~4.0mm, if thickness is less than 0.2 mm, or more than 4 mm, will need to review it at first.
PCB copper thickness capability: Inner layer≤ 6 OZ( but copper thickness ≥5 OZ for 4L,≥4OZ for 6L,≥3OZfor 8L and above shall be reviewed)
Outer layer copper: ≤ 10 OZ(≥5 OZ needs to review)
Bow and twist tolerance is 0.075%.
Min hole size: 1) If board thickness ≤2.0mm, min hole size 0.20mm. If Board thickness>2.0mm , min hole size: aspect ratio≤10(for drill bit)
2) If board thickness≤0.8mm, min hole size 0.10mm. If board thickness≤1.2mm, min hole size 0.15mm
Solder mask color: Green, matt green,blue, matt blue, black, matt black, yellow, red, white, and as your request.
Silkscreen color: White, black and as your request
Surface finished: HASL, LF-HASL, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Plating hard gold,etc.
| Circuit board Layer count: | 4 L | Circuit board laminate: | FR4 TG170 |
| Layer Copper thick: | 1/1/1/1OZ | Board thickness: | 1.6MM |
| Smallest hole size: | 0.25mm | Smallest PCB track/gap: | 6/6mil |
| Solder mask color: | KSM Green | Silk screen color: | White |
| PCB surface finished: | Immersion Gold | Board profile: | Routing |
| PCB Board Application: | industrial control | ||
| Requesting Special requirement: | impedance control0.25mm BGA | ||
