0.9mm 3L Polyimide Rigid Flex PCB
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Type | 3L Rigid Flexible Printed Circuit Board | Surface Finished | ENIG |
|---|---|---|---|
| Board Thickness | 0.9mm | Copper Thickness | Hoz |
| E-Test | 100% E-Tested | Other Service | PCB Assembly, Rapid Prototype Order |
| High Light | 3L Polyimide Rigid Flex PCB,0.9mm Polyimide Rigid Flex PCB,0.9mm flex circuit prototype |
||
Product Description

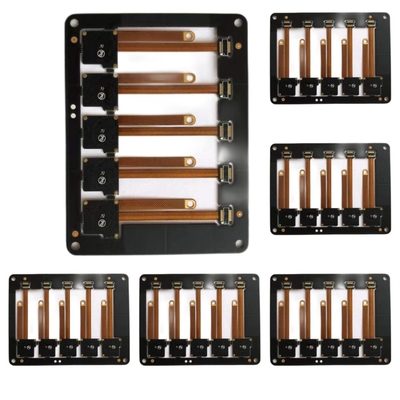

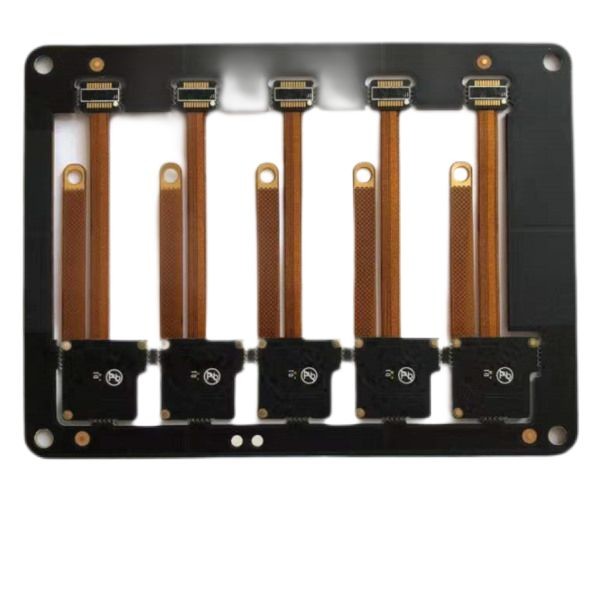

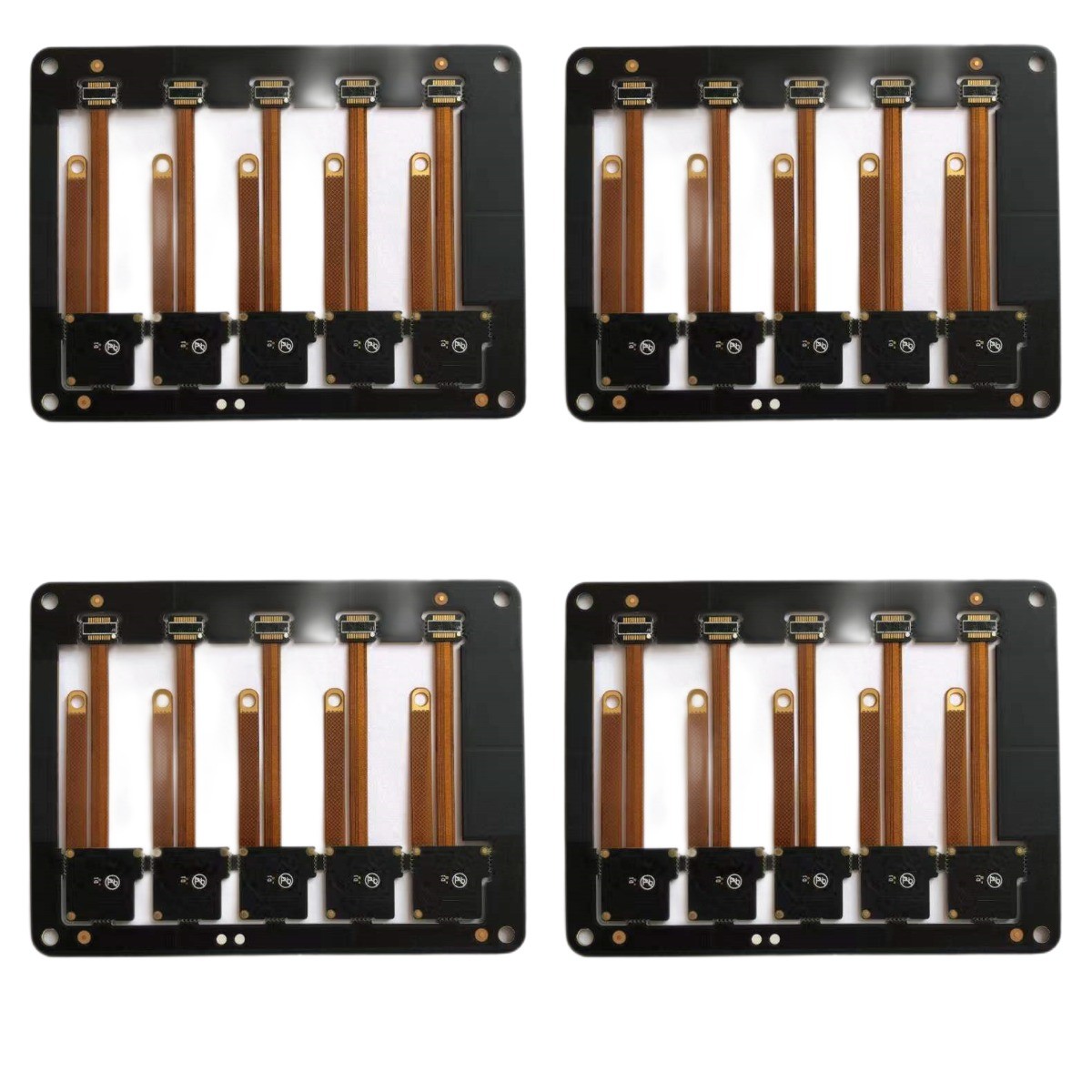

0.9mm 3L Polyimide Rigid Flex PCB
Rigid Flex PCB PCB Printed Circuit Board Polyimide Flex Circuit Flexible PCB Assembly Rigid Flex Circuit Boards
3L Rigid flexible printed circuit board
PCB Type: Rigid-flex PCB
PCB Layer: Single layer, double sided, multi-layer
Raw material: PI, FR4
Copper thickness: 0.5oz, 1oz, 2oz, 3oz, 4oz, 5oz
Smallest hole size: 0.15mm
Minimum line width:0.075mm/3mil
Minimum line spacing:0.075mm/3mil
Shape processing: Die stamping, cutting, laser prototyping
Solder mask: PI solder mask coverlay film or PET solder mask covelay film lamination( Black, Red, Yellow and Green, etc)
Surface finished: Immersion Tin, Plating Nickel Gold, ENIG,OSP, Immersion Silver, etc(mostly ENIG)
Advantages: Space-saving, Flexible design,
A Rigid-Flex Printed Circuit Board combines various rigid and flexible technologies that tend to make up a very diverse and effective combination of the two. They can absorb much heat, and make for a tiny and compact circuit that can be as effective as bigger circuits. So they are specifically designed for use in high-performance and high-speed applications,like telecommunication systems, aerospace equipment,automotive devices,military equipment,consumer appliances and so on.
Advantages of Rigid-Flex Board:
1) Weight reduction
2) More valuable component assembly and wiring space
3) Increase reliability
4) Improve heat dissipation
| PCB Layer | 3L Rigid flexible printed circuit board |
| PCB surface | ENIG |
| PCB material | FR4+PI |
| PCB thickness | 0.9mm |
| Copper thickness | Hoz |
| Min. hole size | 0.3mm |
| PCB profile |
Routing |
| PCB solder mask | Blck |
| PCB silkscreen | White |
| E-test | 100% E-Tested |
| Other service | PCB assembly, rapid prototype order |
FAQ:
1. What service can you provide?
PCB Manufacture,PCB Assembly,Rapid Prototype
2. How fast is your lead time?
Fastest 24H for 2L and 4L, 3WDs for HDI board.
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
sample:
| PCB Layer | 2L |
| PCB surface | LF-HASL |
| PCB material | FR4, TG170 |
| Copper thickness | 1/1oz finished |
| PCB solder mask | Double side,green |
| PCB silkscreen | Double side,White |
| Quantity | 15pcs,15 working day |
4.What payment terms do you have?
Wire Transfer(T/T)
They can absorb much heat, and make for a tiny and compact circuit that can be as effective as bigger circuits.
