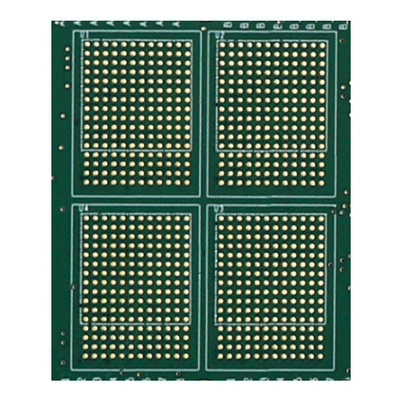

6L 2OZ Multilayer Printed Circuit Board FR4 TG135 Multi Layer Pcb Green Solder Mask
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Multi Layer Pcb | Material | FR4 TG135 |
|---|---|---|---|
| PCB Layer | 6L | PCB Thickness | 1.6 |
| PCB Copper Thickness | 2OZ | Min. Hole Size | 0.2mm |
| PCB Solder Mask | Green | PCB Legend | White |
| Highlight | 2OZ Multilayer Printed Circuit Board,TG135 Multilayer Printed Circuit Board,TG135 Multi Layer Pcb |
||
Product Description
6L 2OZ Multilayer Printed Circuit Board FR4 TG135 Multi Layer Pcb Green Solder Mask
Multilayer Printed Circuit Board Blank Circuit Board Small Printed Circuit Board Single Circuit Board
6L Printed Circuit Board/PCB Board
Max layers: 32layer (≥20 layer needs to review)
Max finish panel size: 740* 500 MM(>600 MM needs to review)
Min finish panel size: 5 * 5mm
PCB material: PI +FR4,FR4, Rogers,Halogen-free, High TG and heavy copper,
PCB thickness: 0.2~4.0mm(＜0.2 mm,＞4 mm needs to review)
PCB copper thickness: H~5oz
Bow and twist: 0.075%
Min. hole size: 0.15mm(＜0.15 mm needs to review)
Max hole size: 6.0mm(>6mm, use milling to enlarge holes)
HDI Min drill hole: 0.08-0.10MM
Min space in inner layer(one-sided): 4～8L(include): sample: 4 mil; small volume: 4.5 mil;
8~12L(include): sample: 5 mil; small volume: 5.5 mil
12～18L(include): sample: 6 mil; small volume: 6.5 mil
PCB solder mask: Green, Matt green,Blue, Matt blue, Black, Matt black, Yellow, Red, White,etc
PCB silkscreen: White, Black, etc
PCB surface: HASL lead free,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger
Application: Communications, Industry/comsumer Electronic.
| PCB Layer | 6L |
| PCB surface | Immersion Gold 2u" |
| PCB material | FR4, TG135, KB6160 |
| PCB thickness | 1.6mm |
| Min. hole size | 0.2mm |
| PCB track/gap: | 4mil |
| PCB outline | Rout and V-CUT |
| PCB solder mask | Green |
| PCB silkscreen | White |
| Usage | CE |
FAQ:
1. What service can you provide?
Printed Circuit board, Printed Circuit Assembly, Rapid Prototype order
2. How fast is your lead time?
HDI board fastest 3 WDs, 2L and 4L Rigid board fastest 24H
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
Sample:
| PCB Layer | 4L |
| PCB surface | ENIG |
| PCB material | FR4, TG135 |
| finished Copper thickness | 2/2/2/2oz |
| solder mask color | Double side, red |
| Silkscreen | Double side, black |
| Quantity | 1000pcs, 2 weeks |
4.What payment terms do you have?
T/T
