FR4 TG135 Multi Layer Circuit Board Immersion Au IPC Class 2 PCB
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Board Type | Multilayer Printed Circuit Board | Marterial | FR4 TG135 |
|---|---|---|---|
| PCB Surface Finished | Immersion Au | Solder Mask | Green Color For Double Sides |
| Legend | White Color For Double Sides | Other Details | IPC Class 2 |
| High Light | TG135 Multi Layer Circuit Board,2mm Multi Layer Circuit Board,135 IPC Class 2 PCB |
||
Product Description

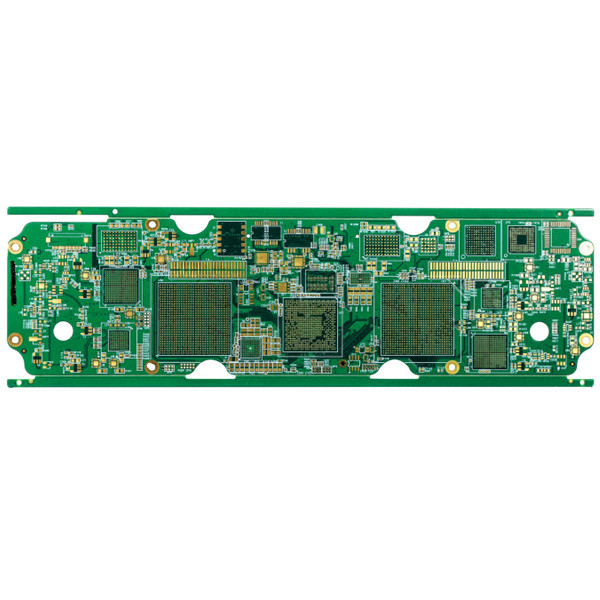

FR4 TG135 Multi Layer Circuit Board Immersion Au IPC Class 2 PCB
Multilayer Printed Circuit Board Prototype Printed Circuit Board A Printed Circuit Board Order Printed Circuit Board
Multilayer printed circuit board
The layer of board we can do can reach to 32, but if the board layer is 20 or more than 20, it will need to be reviewed at first.
The panel size of HSX factory's capability is max 740x500mm, but when the panel size is larger than 600mm, it will need to be review at first. And the minimum panel size that we can reach is 5*5mm.
Standard materials include FR4, Rogers, Isola, high TG material, anti-CAF material and so on.
The PCB thickness we can reach is from 0.2mm to 4.0mm, when the board thickness is lower than 0.2mm, or higher than 4mm, the board will need to be evaluated at first. (PS. When board thickness is equal to or less than 0.6mm, it will not apply for HASL surface finished)
The inner and outer layer's base copper thickness is smallest 0.3/0.5oz, and max 3oz.
0.15mm is factory's minumun hole size capability, when the hole size is smaller than 0.15mm, the board will need to be reviewed at first.
Factory's standard solder resist thickness is from15 to 20um.
The colors of solder resist contain green,matt green,blue,matt blue,black,matt black,yellow,red,white, and as customer specify.
The colors of leged contain white, black and as customer specify.
| PCB Layer | 4L(multilayer printed circuit board) |
| PCB surface | Immersion Au |
| PCB material | FR4, TG135 |
| PCB thickness | 2.0mm |
| Min. hole size | 0.15mm |
| unit per panel | 1 unit per panel |
| PCB profile |
Routing and V-CUT |
| PCB solder mask | Green, both side |
| PCB silkscreen | White, both sides |
| Hole tolerance | PTH ± 0.075 mm, and NPTH ± 0.05 mm |
| Other details | IPC class 2 |
FAQ:
1. What service can you provide?
PCB Manufacture,PCB Assembly,Rapid Prototype
2. How fast is your lead time?
Fastest 24H for 2L and 4L, 3WDs for HDI board.
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
sample:
| PCB Layer | 2L |
| PCB surface | LF-HASL |
| PCB material | FR4, TG170 |
| Copper thickness | 1/1oz finished |
| PCB solder mask | Double side,green |
| PCB silkscreen | Double side,White |
| Quantity | 15pcs,15 working day |
4.What payment terms do you have?
Wire Transfer(T/T)
