Small BGA Multilayer Printed Circuit Board 6 Layer 3mil Immersion Gold
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 6L Halogen Free Printed Circuit Board | Material | FR4 Halogen Free |
|---|---|---|---|
| PCB Layer | 6L | Board Thickness | 1.6mm |
| Finished Copper Thickness | 1/1/1/1/1/1OZ | 6L Halogen Free Printed Circuit Board | 0.15mm |
| Min.PCB Track/gap | 3/3mil | Solder Mask Color | Green |
| Silkscreen Color | White | Special Request | Halogen Free Material/0.25mm BGA |
| Highlight | 6L Multilayer Printed Circuit Board,3mil Multilayer Printed Circuit Board,3mil multilayer board |
||
Product Description

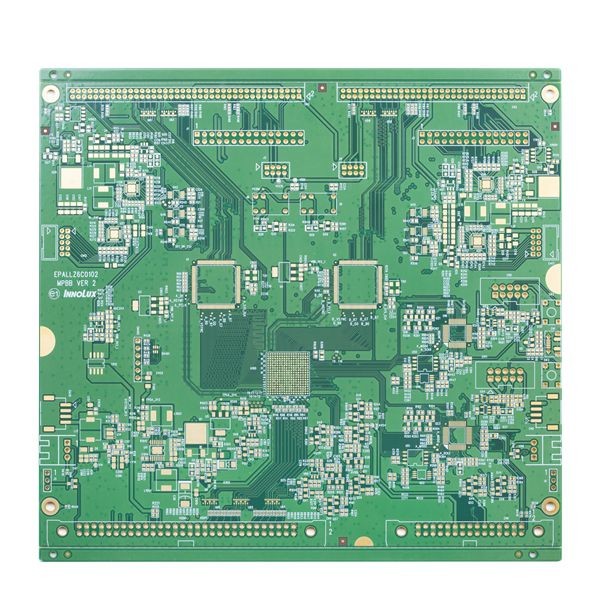

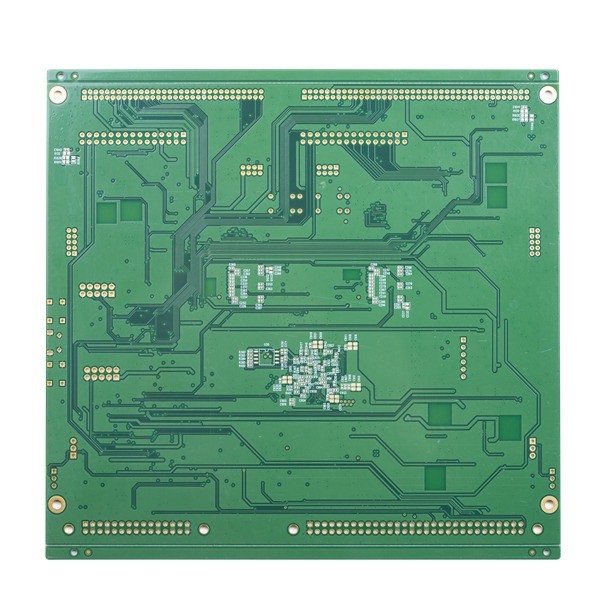

Small BGA Multilayer Printed Circuit Board 6 Layer 3mil Immersion Gold
Multilayer Printed Circuit Board Halogen Free Material Small BGA Small Line Space And Gap Multilayer PCB
6L Halogen Free Printed Circuit Board
Max layers: 32layer (≥20 layer needs to review)
Max finish panel size: 740* 500 MM(>600 MM needs to review)
Min finish panel size: 5 * 5mm
Min drill hole: 0.15mm(＜0.15 mm needs to review)
HDI Min drill hole: 0.08-0.10MM
Aspect ratio: 15:1 (＞12:1 needs to review)
Board thickness: 0.2~4.0mm(＜0.2 mm,＞4 mm needs to review)
Copper thickness: Inner layer≤ 6 OZ(≥5 OZ for 4L,≥4OZ for 6L,≥3OZfor 8L and above shall be reviewed)
Outer layer copper≤ 10 OZ(≥5 OZ needs to review)
Copper in holes≤ 5 OZ(≥1 OZ needs to review
Min space in inner layer(one-sided): 4～8L(include): sample: 4 mil; small volume: 4.5 mil;
8~12L(include): sample: 5 mil; small volume: 5.5 mil
12～18L(include): sample: 6 mil; small volume: 6.5 mil
| PCB Layer | 6L | PCB material | FR4 |
| Copper thickness | 1/1/1/1/1/1OZ | PCB thickness | 1.6MM |
| Min. hole size | 0.15mm | Min.PCB track/gap: | 3/3mil |
| PCB solder mask | Green | PCB silkscreen | White |
| PCB surface finished | Immersion Gold | PCB outline | Routing/V-CUT |
| Application | medical devices | ||
| Special requirement: | small line space and gap:3/3mil/min. via hole size 0.15mm/halogen free/impedance control/0.25mm BGA | ||
FAQ:
1. What service can you provide?
Printed Circuit board, Printed Circuit Assembly, Rapid Prototype order
2. How fast is your lead time?
HDI board fastest 3 WDs, 2L and 4L Rigid board fastest 24H
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
Sample list:
| PCB Layer | 4L |
| PCB surface | ENIG |
| PCB material | FR4, TG135 |
| finished Copper thickness | 2/2/2/2oz |
| solder mask color | Double side, red |
| Silkscreen | Double side, black |
| Quantity | 1000pcs, 2 weeks |
4.What payment terms do you accept?
A: Wire Transfer(T/T) or Letter of Credit(L/C) or Paypal(only for small value less than 500usd)
