3.2mm Ceramic PCB Board Green Solder Mask OSP Immersion Gold
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | Green Ceramic Base PCB | Marterial | FR-4;High TG FR-4; Ceramic Base Material |
|---|---|---|---|
| Surface Finished | Immersion Gold, LF-HASL, OSP... | Board Thickness | 3.2mm |
| Copper Thickness | 18um-105um | Solder Mask | Green |
| Highlight | 3.2mm Ceramic PCB Board,OEM 3.2mm Ceramic PCB Board,3.2mm green pcb board |
||
Product Description

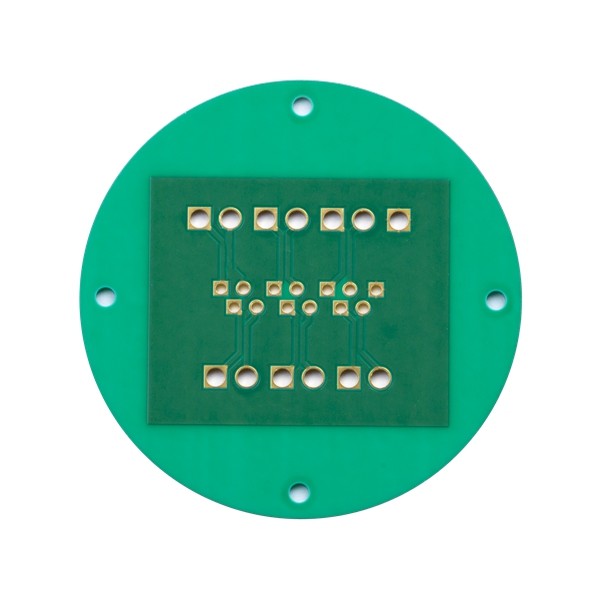

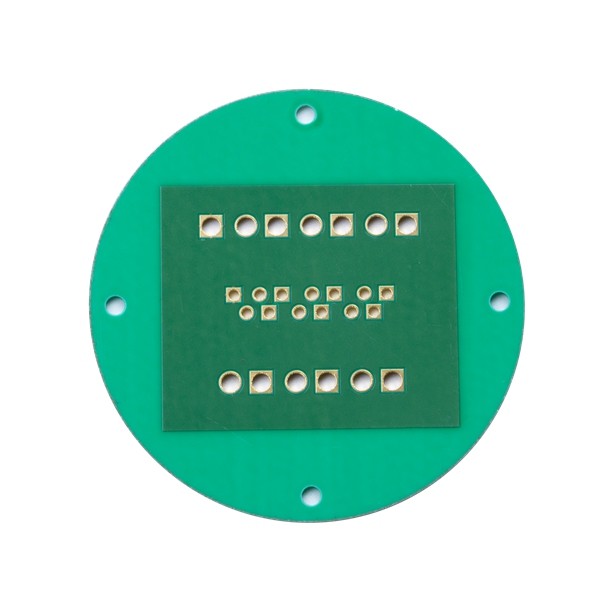

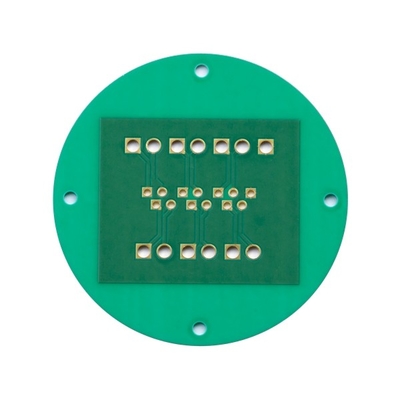

3.2mm Ceramic PCB Board Green Solder Mask OSP Immersion Gold
Ceramic PCB Board Green Ceramic Base PCB Ceramic Base Material FR4 Material Excellent Mechanical Compatibility
Green Ceramic Base PCB
Ceramic PCB have good high-frequency and electrical performance, and have high thermal conductivity, excellent chemical and thermal stability. Excellent corrosion resistance, it widely used in semiconductor and microelectronic circuit packaging pcb, High-brightness Led chip carrier board, automotive electronics and lighting components, high-power electronic component heat dissipation materials, etc.
Ceramic PCBs provide best source of reacting point for printed circuits due to two reasons, high thermal conductivity and low coefficient of thermal expansion (CTE). The ceramic PCB is highly unique and useful because it is a complete replacement of traditional printed circuit boards having simple structure and increased performance.
Characteristics of Ceramic PCB:
1. Ceramic printed circuit boards are excellent heat conductors.
2. Ceramic circuit boards are not easily eroded by chemicals.
3. Ceramic PCBs provide a high level of mechanical compatibility.
4. High-density outlining is simple on ceramic boards.
5. Their CTA component compliance is excellent.
| Items | Normal standard |
| Material | FR-4;High TG FR-4; Ceramic base material |
| Layer NO. | 1-20 |
| Board Size | 50mm*50mm-560mm*640mm |
| Board Thickness | 0.4mm-4.0mm |
| Thickness Tolerance | ±10% |
| Min Hole Size | 0.15mm |
| Copper Thickness | 18um-105um |
| Copper Plating hole | 18um-30um |
| Min Trace Width | 0.1mm |
| Min Space Width | 0.1mm |
| Solder Mask Color | green;blue;black;red... |
| Surfae | Immersion gold, LF-HASL, OSP... |
| Outline profile | CNC; V-CUT; Punching |
| Impedance Control | ±10% |
| certificate | ISO9001 |
FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.
Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)
Q3:Will our PCB files be checked.
A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any inquires, we will contact you and solve the problems together.
Q4: Does our product will be tested before shipment.
A: Yes. We could provide Function Circuit Testing if you provide us the testing methods.
Q5: Do you provide PCB Assembly services, too?
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
