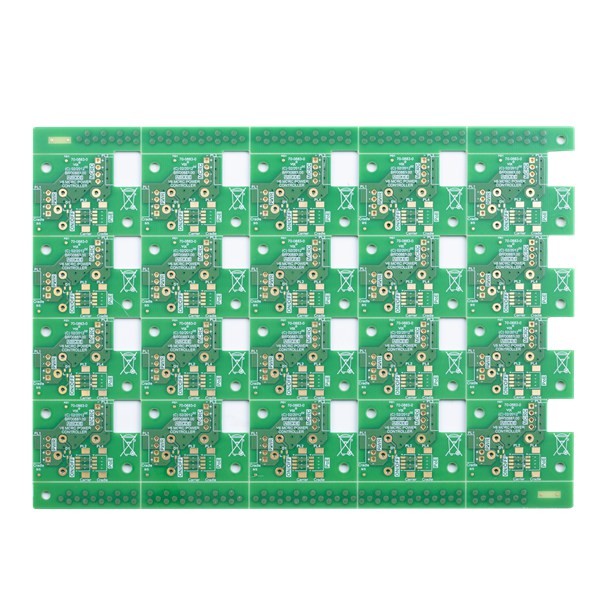

Halogen Free Multilayer Printed Circuit Board HASL Lead Free 1.6mm

Halogen Free Multilayer Printed Circuit Board HASL lead free

The panel size of HSX factory's capability is max 740x500mm, but when the panel size is larger than 600mm, it will need to be review at first. And the minimum panel size that we can reach is 5*5mm.

The PCB thickness we can reach is from 0.2mm to 4.0mm, when the board thickness is lower than 0.2mm, or higher than 4mm, the board will need to be evaluated at first. (PS. When board thickness is equal to or less than 0.6mm, it will not apply for HASL surface finished)

The inner and outer layer's base copper thickness is smallest 0.3/0.5oz, and max 3oz.

0.15mm is factory's minumun hole size capability, when the hole size is smaller than 0.15mm, the board will need to be reviewed at first.

The colors of solder resist contain green,matt green,blue,matt blue,black,matt black,yellow,red,white, and as customer specify.

FAQ:

1. What service can you provide?

Printed Circuit board, Printed Circuit Assembly, Rapid Prototype order

2. How fast is your lead time?

HDI board fastest 3 WDs, 2L and 4L Rigid board fastest 24H

3. How to get quick quotation?

Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)

4. What payment terms do you accept?

A: Wire Transfer(T/T) or Letter of Credit(L/C) or Paypal(only for small value less than 500usd)
