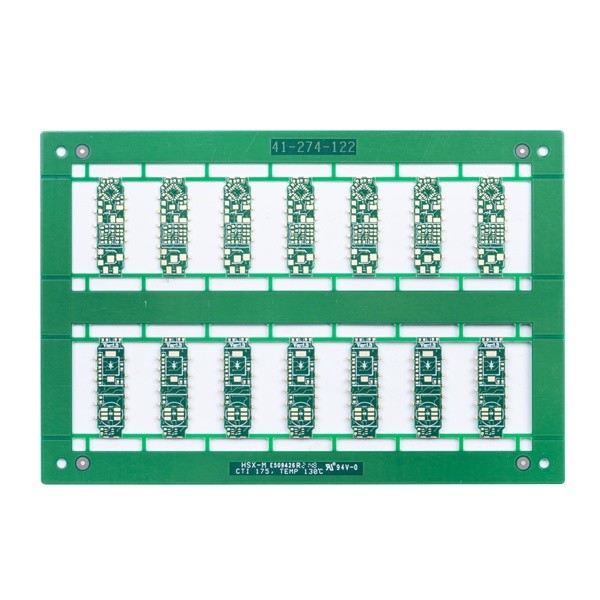

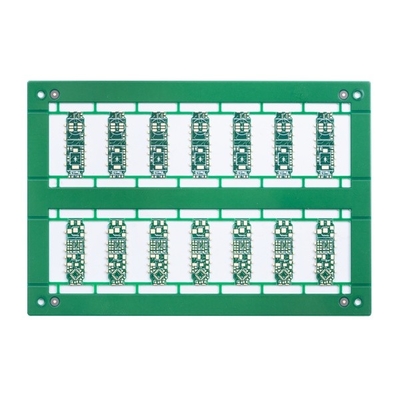

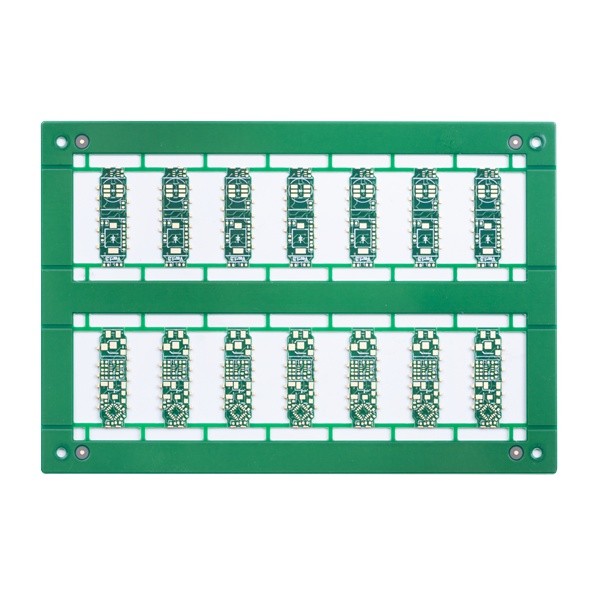

Electronic FR4 TG130 Lead Free PCB 2 Layer Printed Circuit Board
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | 2 Layers PCB Printed Circuit Board | Marterial | FR4 TG130 |
|---|---|---|---|
| Surface Finished | Immersion Gold 2u | Board Thickness | 1.0MM |
| Copper Thickness | 1/1/1/1OZ | Min. Line Distance/space | 5/4mil |
| Smallest Mechanical Drilling Hole | 0.2mm | Special Requirement | Resin Filled And Plated Over/small BGA |
| Applicationcommunications Products | Industrial Control Producs | ||
| High Light | TG130 Lead Free PCB,FR4 Lead Free PCB,TG130 2 Layer Printed Circuit Board |
||
Product Description
Electronic FR4 TG130 Lead Free PCB 2 Layer Printed Circuit Board
Custom Electronic FR4 Lead Free Double Sided 2 Layers PCB Printed Circuit Board
Min. hole size: 0.15mm(need to review the board if smaller than 0.15 mm )
HDI Min drill hole capability: 0.08-0.10MM
PCB track/gap capability: 3mil(0.075mm)
PCB outline method: Routing/V-CUT/Punching
Solder mask thickness capability: standard 15-20um; Advanced: 35um
Min solder mask bridge width capability: green 4mil,other colour 4.8mil
Solder mask filling holes capability: 0.1-0.5mm
The color of solder mask covers green, matt green, blue, matt blue, black, matt black, yellow, red, white, etc
PCB silkscreen includes white, Black and as your request
Peelable mask thickness capability: 500-1000um
Oxidation film of OSP capability: 0.2-0.5um
|
||||||||||||||||||||||||||||
FAQ:
Q1:What is your minimum order quantity?
A: No MOQ.The quantity will only affect the price. Please contact us for RFQ.
Q2:How will you usually ship the PCB?
A: Usually for small packages, we will ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
Q3:How about your PCB factory production capacity?
A: Our monthly production capacity is 50,000 square meter/month and 5000types/month.
Q4:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran, Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India etc.
Q5: Do you provide PCB Assembly services, too?
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
