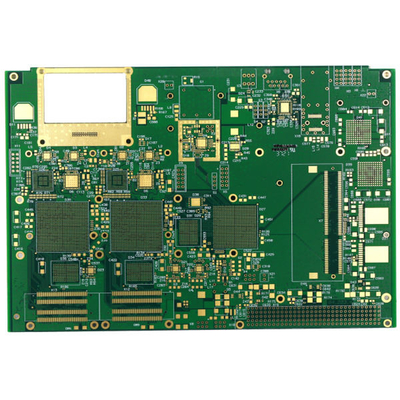

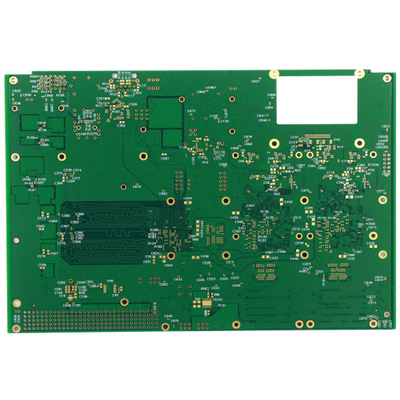

Green Solder Mask Multilayer Rigid Flex PCB Prototype FR4 TG170 2.4mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Rigid FR4 Printed Circuit PCB Board | Material | Rogers +FR4,TG170 |
|---|---|---|---|
| PCB Layer | 8 Layer | Board Thickness | 2.4mm |
| Finished Copper Thickness | 2/2/2/2/2/2oz | Solder Mask Color | Green |
| Silkscreen Color | White | PCB Surface | ENIG 4u" |
| High Light | TG170 Multilayer Rigid Flex PCB,2.4mm Multilayer Rigid Flex PCB,2.4mm multilayer flexible pcb |
||
Product Description
Green Solder Mask Multilayer Rigid Flex PCB Prototype FR4 TG170 2.4mm
Multilayer Printed Circuit Board PCB Printed Circuit Board Assembly Prototype Circuit Board Single Circuit Board
Rigid FR4 Printed Circuit PCB Board
Finished PCB board layer: From 1L to 32L ( will needs to review if layer more than 20L)
Max panel size: 740* 500 MM( will needs to review if size more than 600 MM )
Min panel size: 5 * 5mm
PCB raw material: FR4, Rogers,ISOLA, High TG, Halogenfree material, etc
Finished thickness: 0.2~4.0mm
PCB copper thickness: H~5oz
Bow and twist : 0.075%
Min. size of hole: 0.15mm
HDI Min drill hole: 0.08-0.10MM
PCB track/gap: 3mil(0.075mm)
PCB outline: Routing/V-CUT/Punching
PCB solder mask: Green, Red, Blue, White, Black, Yellow and as your request
PCB silkscreen: White, Black and as your request
PCB surface: HASL lead free,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger
Impedance tolerance: ±5Ω(<50Ω), ±10%(≥50Ω) needs to review if not this value
| PCB Layer | 8L PCB |
| PCB surface | ENIG 4u" |
| PCB material | FR4, TG170+Rogers |
| PCB thickness | 2.4mm |
| Finished copper | 2/2/2/2/2/2/2/2oz |
| Min. hole | 0.25mm |
| PCB outline | Rout and V-CUT |
| PCB solder mask | Green |
| PCB silkscreen | White |
FAQ:
1. What service can you provide?
Printed Circuit board, Printed Circuit Assembly, Rapid Prototype order
2. How fast is your lead time?
HDI board fastest 3 WDs, 2L and 4L Rigid board fastest 24H
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
Sample:
| PCB Layer | 4L |
| PCB surface | ENIG |
| PCB material | FR4, TG135 |
| finished Copper thickness | 2/2/2/2oz |
| solder mask color | Double side, red |
| Silkscreen | Double side, black |
| Quantity | 1000pcs, 2 weeks |
4.What payment terms do you have?
T/T
