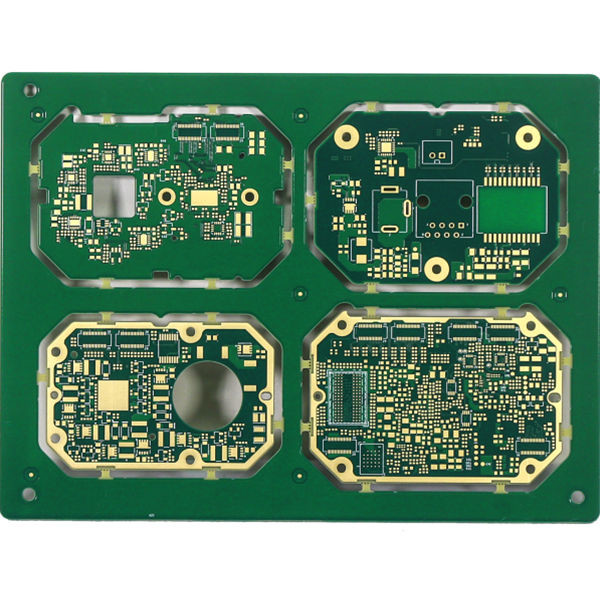

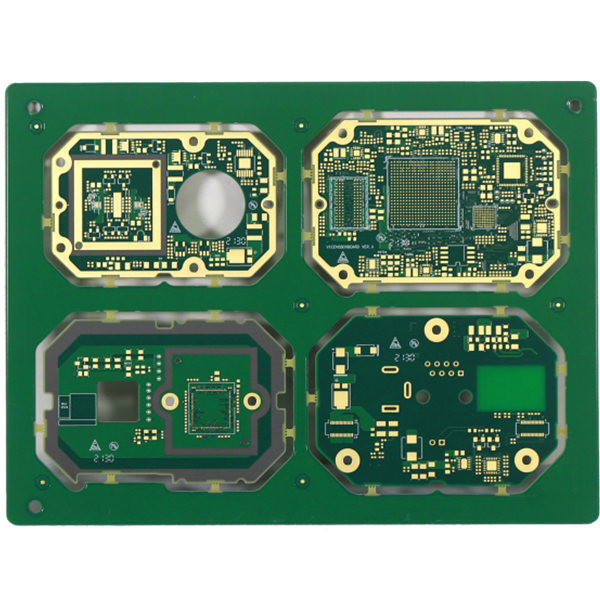

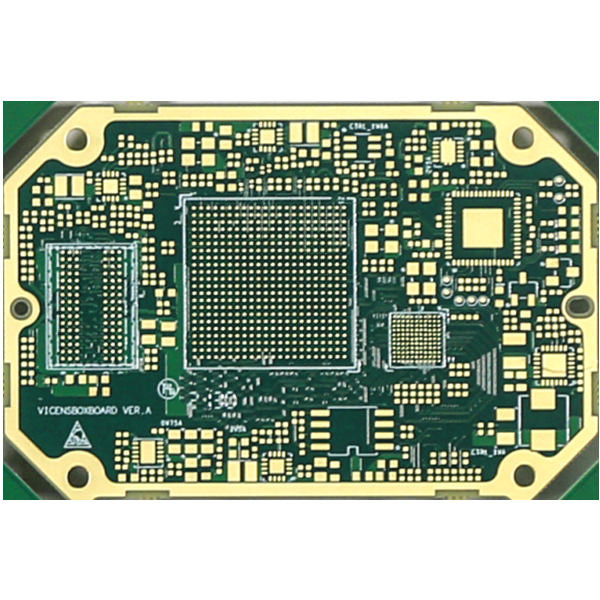

4oz Finished Multilayer Printed Circuit Board Immersion Gold 94V0 4u Halogen Free
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Multilayer Printed Circuit Board(4L) | Raw Material | FR4, TG150, Halogen Free |
|---|---|---|---|
| Surface | Immersion Gold 4u" | Thickness Finished | 2.0mm |
| Copper | 4/4/4/4oz Finished | Solder Mask | Green, Top Side And Bottom Side |
| Legend | White For Top And Bottom Side | Special Request | Plating Edge, Halogen Free Material |
| High Light | 4oz Multilayer Printed Circuit Board,94V0 Multilayer Printed Circuit Board,94V0 multilayer pcb fabrication |
||
Product Description
4oz Finished Multilayer Printed Circuit Board Immersion Gold 94V0 4u Halogen Free
Multilayer Printed Circuit Board Multilayer PCB Circuit Board Components Single Circuit Board Plating Edge
Multilayer Printed Circuit Board(4L)
Board type: Multilayer Printed Circuit Board(4L)
Surface treatment finished: immersionn gold 4u"
Finished PCB thickness (mm): 2.0mm
Specific material requirements: UL94V0, FR4, TG150, Halogen free
Finished copper weight of outer layer:4oz
Finished copper weigh of inner layer: 4oz
Through hole plating thickness: 25um
Impedance control: yes, with impedance control
The smallest size of hole is 0.2mm
Press-fit hole: no, without press-fit hole
Solder mask of top side: Green
Solder mask of bottom side: Green
Silkscreen of top side: White
Silkscreen of bottom side: White
Circuit Outline/profile: Routing
Panel profile: Routing
E-test Request: all PCBs be e-tested
| PCB Layer | Multilayer Printed Circuit Board(4L) |
| PCB surface | Immersionn gold 4u" |
| PCB material | FR4, TG150, Halogen free |
| PCB thickness | 2.0mm finished+/-10% |
| Min. hole size | 0.2mm |
| PCB solder mask | Green, top side and bottom side |
| PCB silkscreen | White, top side and bottom side |
| PCB finished copper | 4oz for both inner layer and outer layer |
| Special request | Plating edge, Halogen free material, 25um hole copper |
| IPC Class |
2 |
FAQ:
1. What service can you provide?
Printed Circuit board, Printed Circuit Assembly, Rapid Prototype order
2. How fast is your lead time?
HDI board fastest 3 WDs, 2L and 4L Rigid board fastest 24H
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
Sample:
| PCB Layer | 4L |
| PCB surface | ENIG |
| PCB material | FR4, TG135 |
| finished Copper thickness | 2/2/2/2oz |
| solder mask color | Double side, red |
| Silkscreen | Double side, black |
| Quantity | 1000pcs, 2 weeks |
4.What payment terms do you have?
T/T
