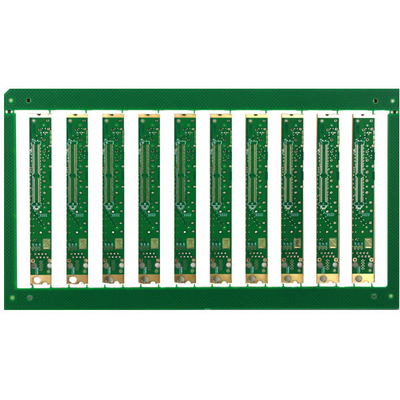

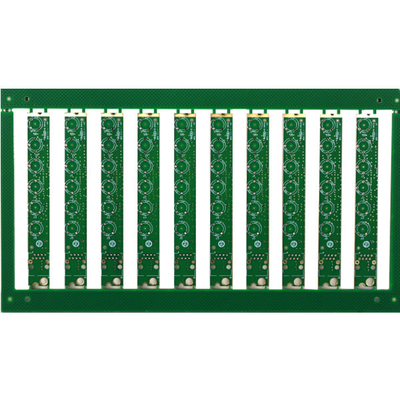

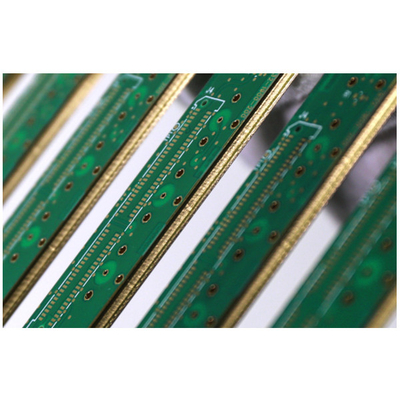

1.6mm HASL OSP Multi Layer Pcb Board FR4 Halogen Free Green Solder Mask
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | PCB Printed Circuit Board(FR4,4L) | Raw Material | FR4, CTI600 |
|---|---|---|---|
| Surface | ENIG 2U" | Thickness | 1.6mm Finished |
| PCB Copper | 2/2/2/2oz Finished | Solder Mask | Green , For Both Side |
| Legend | White, For Both Side | Special Request | CTI600 |
| High Light | 1.6mm Multi Layer Pcb Board,HASL OSP Multi Layer Pcb Board,HASL OSP multilayer pcb board |
||
Product Description
1.6mm HASL OSP Multi Layer Pcb Board FR4 Halogen Free Green Solder Mask
Multilayer Printed Circuit Board Electronics Circuit Board Circuit Board Components FR4 Printed Circuit Board
PCB Printed Circuit Board(FR4,4L)
Layers:1-32layer, if the layer is 20L or mare than 20L, will need to review the board.
The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.
The Minimum panel size is 5 * 5mm.
Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...
Blind and buried holes lamination press times: Press with same core ≤3times (>3 times needs to review)
PCB thickness capability is from 0.2~4.0mm, if thickness is less than 0.2 mm, or more than 4 mm, will need to review it at first.
PCB copper thickness capability: Inner layer≤ 6 OZ( but copper thickness ≥5 OZ for 4L,≥4OZ for 6L,≥3OZfor 8L and above shall be reviewed)
Outer layer copper: ≤ 10 OZ(≥5 OZ needs to review)
Bow and twist tolerance is 0.075%.
Min hole size: 1) If board thickness ≤2.0mm, min hole size 0.20mm. If Board thickness>2.0mm , min hole size: aspect ratio≤10(for drill bit)
2) If board thickness≤0.8mm, min hole size 0.10mm. If board thickness≤1.2mm, min hole size 0.15mm
Solder mask color: Green, matt green,blue, matt blue, black, matt black, yellow, red, white, and as your request.
Silkscreen color: White, black and as your request
Surface finished: HASL, LF-HASL, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Plating hard gold,etc.
| PCB Layer | PCB Printed Circuit Board(FR4,4L) |
| PCB surface finished | ENIG 2u" |
| PCB material | FR4, CTI600 |
| PCB thickness | 1.6mm finished |
| Min. hole size | 0.25mm |
| PCB solder mask | Green, for both side |
| PCB Legend | White for both side |
| PCB Copper | 2/2/2/2oz finished |
| IPC Class | 2 |
| Special request |
CTI600 |
FAQ:
1. What service can you provide?
Printed Circuit board, Printed Circuit Assembly, Rapid Prototype order
2. How fast is your lead time?
HDI board fastest 3 WDs, 2L and 4L Rigid board fastest 24H
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
Sample:
| PCB Layer | 4L |
| PCB surface | ENIG |
| PCB material | FR4, TG135 |
| finished Copper thickness | 2/2/2/2oz |
| solder mask color | Double side, red |
| Silkscreen | Double side, black |
| Quantity | 1000pcs, 2 weeks |
