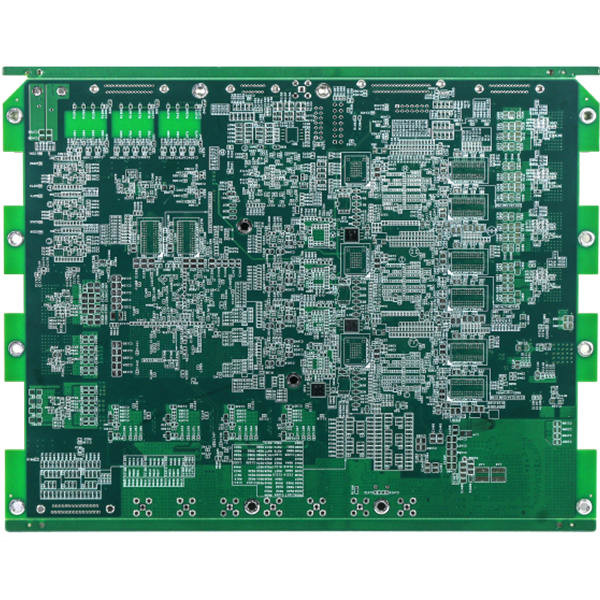

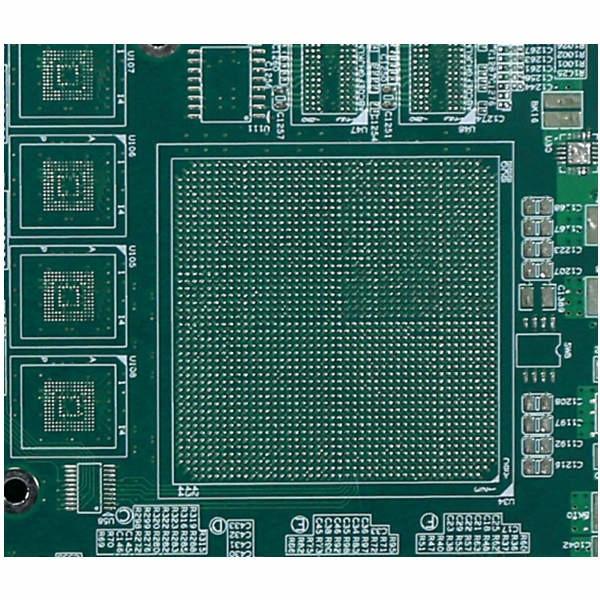

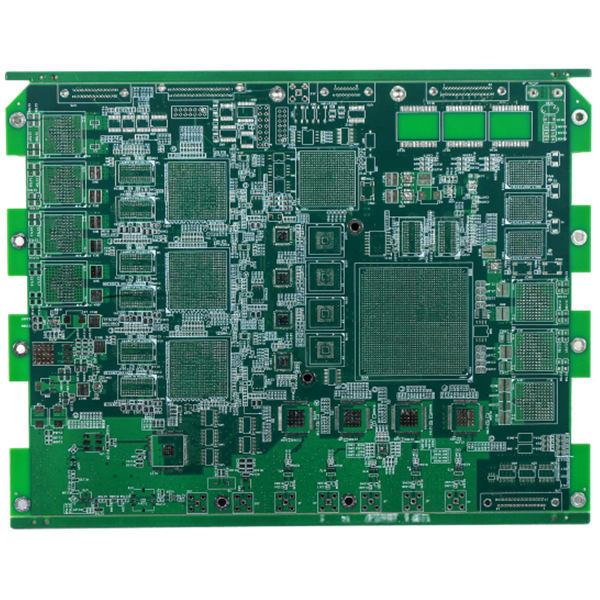

LF HASL Multilayer Printed Circuit Board 2oz Finished 4L Lead Free
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Layer | 4L Multilayer PCB | Raw Material | FR4, TG170 |
|---|---|---|---|
| Surface Finish | LF HASL | Thickness Finished | 1.6mm，+/-10% Tolerance |
| Outer Layer Copper | 2oz Finished Weight | Inner Layer Copper | 1 Oz (35µm) Base Weight |
| Solder Mask Color | Green, 2 Sides | Silkscreen Color | White, 2 Sides |
| High Light | LF HASL Multilayer Printed Circuit Board,4L Multilayer Printed Circuit Board,LF HASL fr4 circuit board |
||
Product Description
LF HASL Multilayer Printed Circuit Board 2oz Finished 4L Lead Free
Multilayer Printed Circuit Board Unit Circuit Consumer Electronic PCB Print Circuit Board
4L multilayer PCB
Board type: Multilayer Printed Circuit board
PCB Layer: 4L
Surface finished is HASL Lead free
Finished PCB thickness (mm): 2.0mm
Specific raw material requirements: FR4, TG170
Copper weight of outer layer is 2oz finished weight
Copper weigh of inner layer: 1 oz (35µm) base weight
Plating thickness of through hole: 18 microns
Impedance control: No
Countersink hole/ coutersunk hole:No
Counterbore hole: No
The minimum of hole is 0.25mm
Solder Resist: Green, top side and bottom side
Silkscreen of top side: White, top side and bottom side
Circuit profile: V-CUT and routed
E-test request: all PCBs be e-tested
IPC class: 2
| PCB Layer | Multilayer Printed Circuit Board(4L) |
| PCB surface finished | LF-HASL |
| PCB material requirement | FR4, TG170 |
| PCB thickness finished | 1.6mm finished |
| Smallest hole size | 0.25mm |
| PCB solder mask color | Green, top side and bottom side |
| PCB silkscreen color | White, top side and bottom side |
| Copper weigh of outer layer | 2oz finished weight |
| Copper weigh of inner layer | 1 oz (35µm) base weight |
| Application |
Communication |
FAQ:
1. What service can you provide?
Printed Circuit board, Printed Circuit Assembly, Rapid Prototype order
2. How fast is your lead time?
HDI board fastest 3 WDs, 2L and 4L Rigid board fastest 24H
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
Sample:
| PCB Layer | 4L |
| PCB surface | ENIG |
| PCB material | FR4, TG135 |
| finished Copper thickness | 2/2/2/2oz |
| solder mask color | Double side, red |
| Silkscreen | Double side, black |
| Quantity | 1000pcs, 2 weeks |
4.What payment terms do you have?
T/T
