Half Hole Rigid Multilayer Printed Circuit Board FR4 TG150 Enig Finish Pcb
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Layer | Rigid FR4 Multilayer Printed Circuit Board | Marterial | FR4, TG150, CAF-ANTI |
|---|---|---|---|
| PCB Surface Finished | ENIG | Solder Mask | Green Color, Double Sides |
| Legend | White Color, Double Sides | Other Details | Half Hole |
| High Light | TG150 Multilayer Printed Circuit Board,FR4 TG150 Multilayer Printed Circuit Board,TG150 Enig Finish Pcb |
||
Product Description

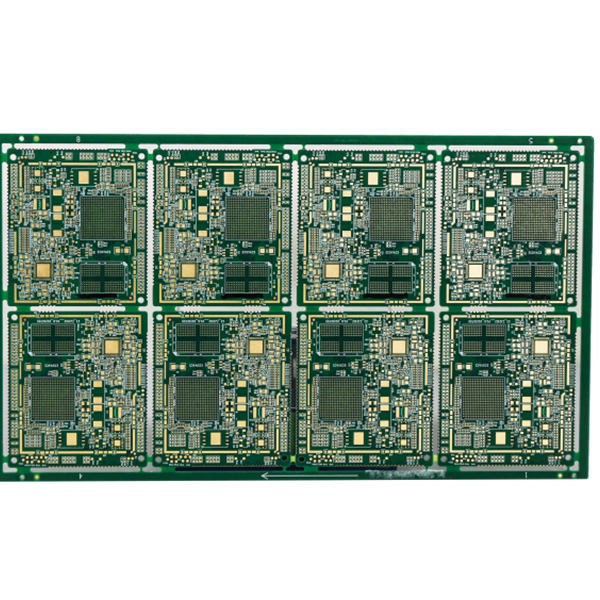

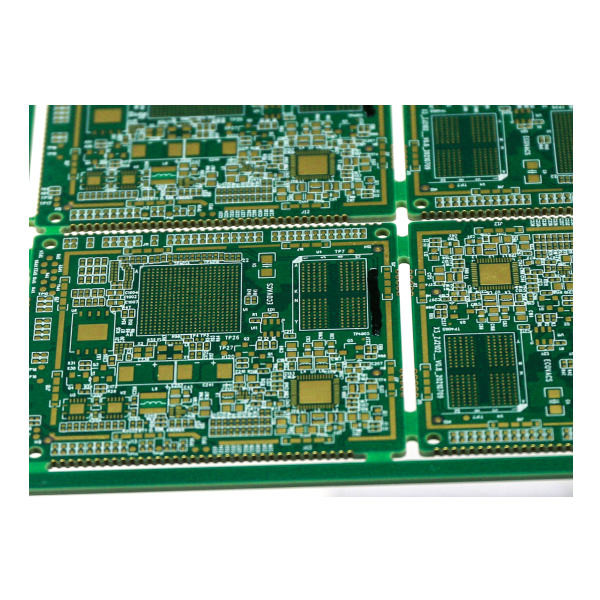

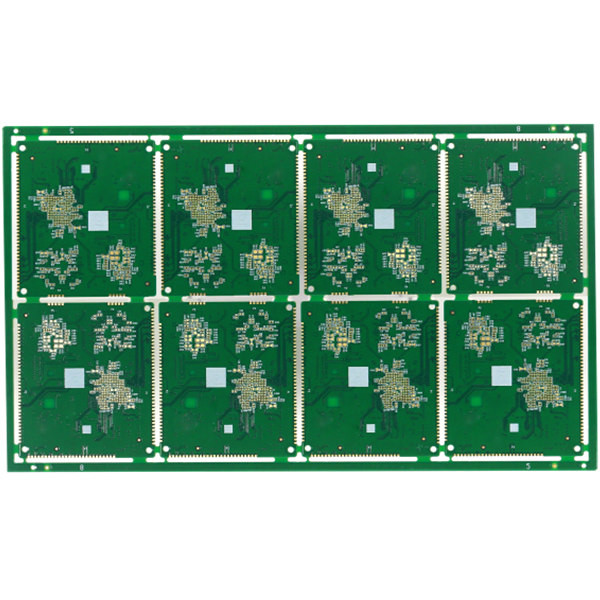

Half Hole Rigid Multilayer Printed Circuit Board FR4 TG150 Enig Finish Pcb
Multilayer Printed Circuit Board Half Hole PCB Rigid Printed Cicuit Board Integrated Circuit Board
Rigid FR4 multilayer printed circuit board
We can do max 32layer boards, but if board layer is 20L or more than 20L, we will need to review it at first.
The max panel size we can do is 740* 500 MM, but if the panel size is bigger than 600mm, we will need to review it at first. And the minimum panel size we can do is 5*5mm.
PCB materials include PI +FR4,FR4, Rogers, high TG material, anti-CAF material and so on.
The PCB thickness capability is from 0.2mm to 4.0mm(if board thickness ≤ 0.6mm, it will do not apply for HASL surface treatment) . And if the board thickness less than 0.2mm, or bigger than 4mm, it will need to be reviewed at first.
The copper thickness of inner and outer base copper is minimum 0.3/0.5oz, max 3oz.
The smallest hole size is 0.15mm, if the hole size is smaller than 0.15mm, we will need to review it at first.
The standard solder mask thickness is 15-20um.
The colors of solder mask include green,matt green,blue,matt blue,black,matt black,yellow,red,white, and so on.
The colors of silkscreen include white, black and as customer request.
| PCB Layer | Rigid FR4 multilayer printed circuit board |
| PCB surface | ENIG |
| PCB material | FR4, TG150, CAF-ANTI |
| PCB thickness | 1.6 |
| Min. hole size | 0.25mm |
| PCB track/gap: | 0.13mm |
| PCB outline |
Routing and V-CUT |
| PCB solder mask | Green |
| PCB silkscreen | White |
| shipment detail | ship as unit circuit |
| other details | Half hole, IPC class 2 |
FAQ:
1. What service can you provide?
PCB Manufacture,PCB Assembly,Rapid Prototype
2. How fast is your lead time?
Fastest 24H for 2L and 4L, 3WDs for HDI board.
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
sample:
| PCB Layer | 2L |
| PCB surface | LF-HASL |
| PCB material | FR4, TG170 |
| Copper thickness | 1/1oz finished |
| PCB solder mask | Double side,green |
| PCB silkscreen | Double side,White |
| Quantity | 15pcs,15 working day |
4.What payment terms do you have?
Wire Transfer(T/T)
