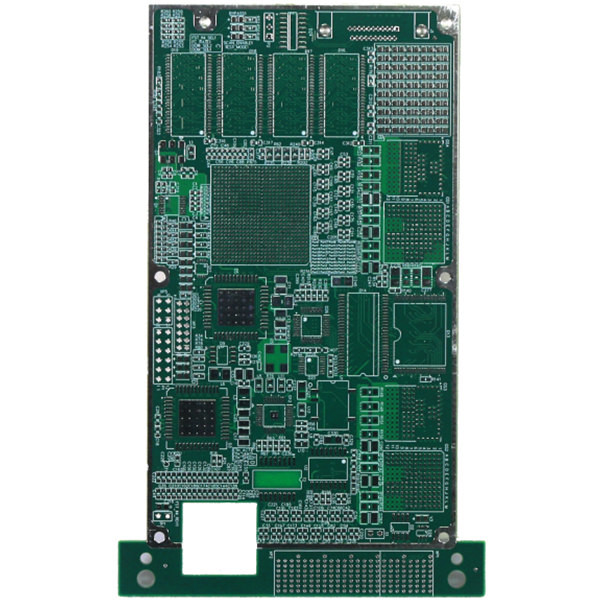

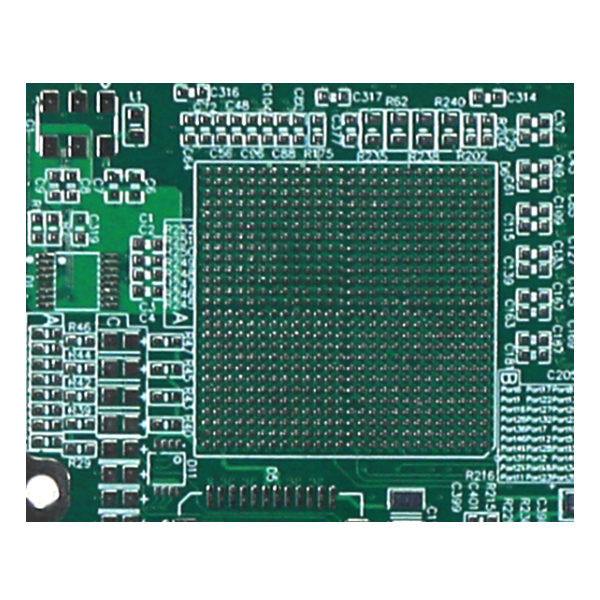

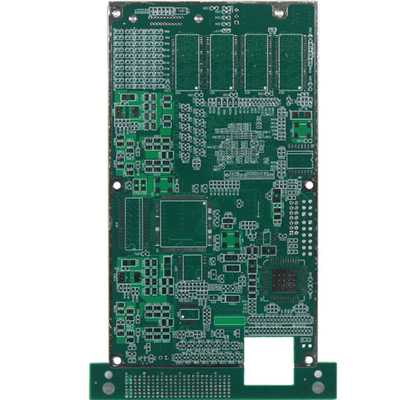

HDI PCB Board Blind Buried Vias Rogers4003C PCB Electronic Circuit Board Assembly Services
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | HDI Printed Circuit Board | Marterial | FR-4, TG170 |
|---|---|---|---|
| Board Layer | 4L | Board Thickness | 1.6mm |
| PCB Copper Thickness | 2/2/2/2oz Finished | Min. Hole Size | 0.1mm |
| Min. Line Spacing | 3mil（0.075mm） | PCB Solder Mask | Green |
| Legend | White | Other Service | PCB Assembly, Prototype Order |
| High Light | 0.075mm HDI PCB Board,1.6mm 4L HDI PCB Board,0.075mm high frequency pcb |
||
Product Description
HDI PCB Board Blind Buried Vias Rogers4003C PCB Electronic Circuit Board Assembly Services
HDI printed circuit board
HSX products cover 1~32L FR-4 PCB, IMS PCB,HDI Boards, high frequency PTFE boards and Rigid-flex boards etc. It provides flexible quick turn production services (12 hours to72 hours), as well as small volume to big volume PCB manufacturing.
Products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace. HSX owns high-educated and experienced team and advanced production equipment.
The panel size of HSX factory's capability is max 740x500mm, but when the panel size is larger than 600mm, it will need to be review at first. And the minimum panel size that we can reach is 5*5mm.
The PCB thickness we can reach is from 0.2mm to 4.0mm, when the board thickness is lower than 0.2mm, or higher than 4mm, the board will need to be evaluated at first. (PS. When board thickness is equal to or less than 0.6mm, it will not apply for HASL surface finished)
The inner and outer layer's base copper thickness is smallest 0.3/0.5oz, and max 3oz.
0.15mm is factory's minumun hole size capability, when the hole size is smaller than 0.15mm, the board will need to be reviewed at first.
The colors of solder resist contain green,matt green,blue,matt blue,black,matt black,yellow,red,white, and as customer specify.
The colors of leged contain white, black and as customer specify.
| PCB Layer | HDI printed circuit board(4L) |
| PCB surface | Immersion Au |
| PCB material | FR-4, TG170 |
| PCB thickness | 1.6mm |
| Min. hole size | 0.1mm |
| Min. line Spacing | 3mil(0.075mm) |
| PCB profile |
Routing and V-CUT |
| PCB solder mask | Green, both side |
| PCB silkscreen | White, both sides |
| PCB copper thickness | 2/2/2/2oz finished |
| Other service | PCB assembly, prototype order |
FAQ:
1. What service can you provide?
PCB Manufacture,PCB Assembly,Rapid Prototype
2. How fast is your lead time?
Fastest 24H for 2L and 4L, 3WDs for HDI board.
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
sample:
| PCB Layer | 2L |
| PCB surface | LF-HASL |
| PCB material | FR4, TG170 |
| Copper thickness | 1/1oz finished |
| PCB solder mask | Double side,green |
| PCB silkscreen | Double side,White |
| Quantity | 15pcs,15 working day |
4.What payment terms do you have?
Wire Transfer(T/T)
