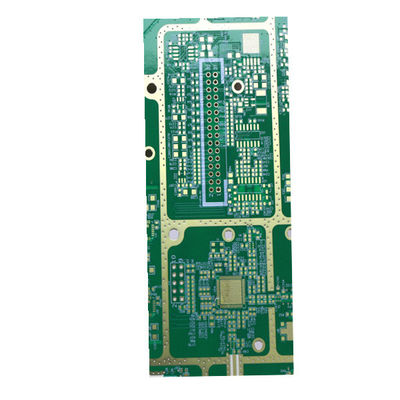

TG130 FR4 Double Sided PCB 3.0mm Halogen Free Dual Layer Pcb
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 2L Printed Circuit Board | Material | FR4 TG130 |
|---|---|---|---|
| PCB Layer | 2L | Board Thickness | 3.0mm |
| Finished Copper Thickness | 1/1OZ | Solder Mask Color | Green Both Sides |
| Silkscreen Color | White, Both Sides | Other Prodcuts | Multilayer Products, HDI PCB, Single Layer Board, Rigid Flex PCB, Quick Turn Board |
| High Light | TG130 FR4 Double Sided PCB,TG130 Double Sided PCB,TG130 Dual Layer Pcb |
||
Product Description
TG130 FR4 Double Sided PCB 3.0mm Halogen Free Dual Layer Pcb
Double Sided PCB Double Sided Prototype PCB Double Sided PCB Board Double Layer Pcb Board PCB Prototype Board
2L Printed Circuit Board
The max layers is 32layer,needs to review if ≥20 layer.
The max finish panel size is 740* 500 MM, but if >600 MM, needs to review the board at first.
The Minimum panel size is 5 * 5mm.
PCB raw materials include PI +FR4,FR4, Rogers,Halogen-free, High TG materials, etc.
PCB thickness capability is from 0.2~4.0mm, if thickness less than 0.2 mm, or more than 4 mm, will needs to review.
PCB copper thickness capability is H~5oz. If more than 5oz, will need to review.
Bow and twist tolerance is 0.075%.
The minimum hole size is 0.15mm, if drilling size less than 0.15mm, will need to confirm.
The max hole size is 6.0mm, if hole size more than 6mm, will need to use milling to enlarge holes.
Min space in inner layer(one-sided): 4～8L(include): sample: 4 mil; small volume: 4.5 mil;
8~12L(include): sample: 5 mil; small volume: 5.5 mil
12～18L(include): sample: 6 mil; small volume: 6.5 mil
PCB solder mask Color: Green, Matt green,Blue, Matt blue, Black, Matt black, Yellow, Red, White,etc
PCB silkscreen color: White, Black, etc
PCB surface: HASL lead free, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger,etc.
| PCB Layer | 2L |
| PCB surface | ENIG 2u" |
| PCB material | FR4, TG170 |
| PCB thickness | 3.0mm |
| Finished copper | 1/1oz |
| Min. hole | 0.15 |
| PCB outline | Routing |
| PCB solder mask | Green, both sides |
| PCB silkscreen | White, both sides |
| Special request | Resin plugged hole and plating over |
FAQ:
1. What service can you provide?
Printed Circuit board, Printed Circuit Assembly, Rapid Prototype order
2. How fast is your lead time?
HDI board fastest 3 WDs, 2L and 4L Rigid board fastest 24H
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
Sample:
| PCB Layer | 4L |
| PCB surface | ENIG |
| PCB material | FR4, TG135 |
| finished Copper thickness | 2/2/2/2oz |
| solder mask color | Double side, red |
| Silkscreen | Double side, black |
| Quantity | 1000pcs, 2 weeks |
4.What payment terms do you have?
T/T
