High Density Interconnect HDI PCB Board 3oz 2.4mm 14 Layer Black Color

Place of Origin China
Brand Name Huashengxin
Certification UL , ISO9001
Model Number 14L 2+N+2 HDI PCB
Minimum Order Quantity 1pcs
Packaging Details vacuum
Delivery Time fastest 24 hours for 2L and 4L prototype, 3 days for HDI board production
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PCB Name 14L 2+N+2 HDI PCB Marterial FR-4, TG170+Rogers
Board Layer 14L Board Thickness 2.4mm
Finished Copper Weight Outer 3oz Internal Copper Weight Inner 3oz
Solder Mask Black Color Smallest Hole Size 0.1mm
Blind/Burried Vias Yes Application Medical Devices
High Light

3oz HDI PCB Board

,

2.4mm HDI PCB Board

,

3oz high density pcb

Leave a Message
Product Description

High Density Interconnect HDI PCB Board 3oz 2.4mm 14 Layer Black Color



HDI PCB Board High Density Interconnect HDI Board PCB Manufacturing Service Black PCB Board



14L 2+N+2 HDI PCB



HDI PCB are abbreviation of  high density interconnect printed circuit boards, they are characterized by finer lines, closer spaces, and more dense wiring.



For HDI boards own higher circuit density than traditional circuit boards, its designs can include smaller through holes and capture pads, and also higher connection pad density. They are widely used to reduce the weight and overall dimensions of products, as well as to enhance the electrical performance of the device.



HDI boards are applied to wide range of industries, like digital devices, smartphones and tablets, automobiles, aircraft and other vehicles products.



HDI Board Stack-up:

1+N+1 with laser microvia and mechanical buried core via. The “1” represents “build-up” or sequential lamination on each side of the core.
i+N+i (i>=2) PCBs contain 2 or more “build-up” of high-density interconnect layers. Microvias on different layers can be staggered or stacked. Copper filled stacked microvia structures are commonly seen in challenging designs.



HSX products cover 1~32L FR-4 PCB, IMS PCB,HDI Boards, high frequency PTFE boards and Rigid-flex boards etc. It provides flexible quick turn production services (12 hours to72 hours), as well as small volume to big volume PCB manufacturing.Products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.



Layer counts: 14 layer Circuit board laminate: FR4 TG170 + ROGERS
Different Copper thickness: 2oz inner base and 2oz outer finished  PCB Board thick: 2.4 MM
Smallest Mechanical drilling hole: 0.1 mm Min. line distandce/space: 0.05mm
Solder mask color: Black color KSM Legends' color: White color
PCB surface finished: Immersion Gold 2u Board profile: Milling+V-CUT
PCB Board Application: science and education
Requesting Special requirement: HDI Buried vias and blind vias, two step stack up /halogen free/impedance control/resin filled and plated over

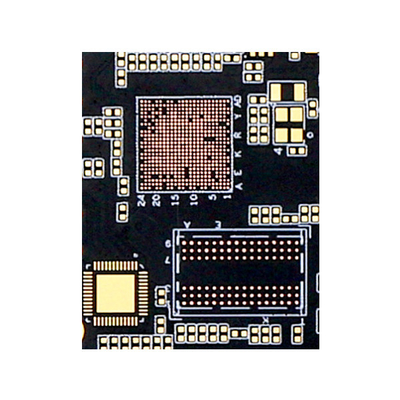

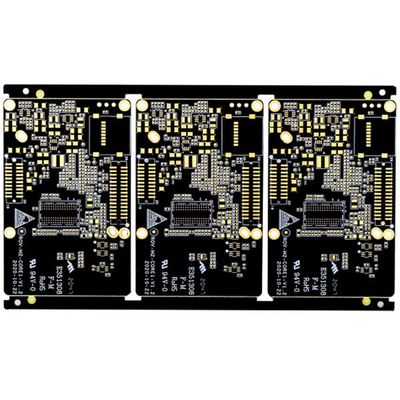

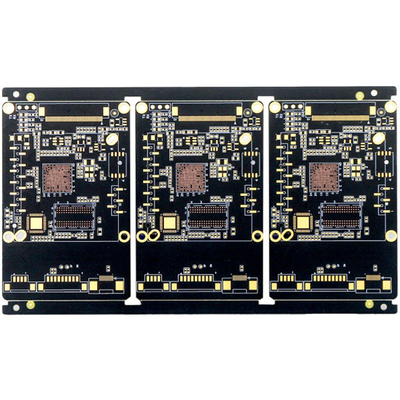

High Density Interconnect HDI PCB Board 3oz 2.4mm 14 Layer Black Color 0High Density Interconnect HDI PCB Board 3oz 2.4mm 14 Layer Black Color 1



FAQ:

1. What service can you provide?

PCB Manufacture,PCB Assembly,Rapid Prototype



2. How fast is your lead time?

Fastest 24H for 2L and 4L, 3WDs for HDI board.



3. How to get quick quotation?

Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)



sample:

PCB Layer 6L
PCB surface IMMERSION GOLD
PCB material FR4, TG170
Copper thickness 3/3/3/3/3/3oz finished
PCB solder mask Double side, Black
PCB silkscreen Double side,White
Special requirement Heavy copper 3OZ/small line space and gap:3/3mil



4.What payment terms do you have?

Wire Transfer(T/T)
