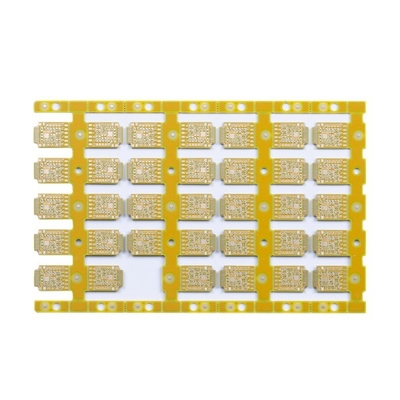

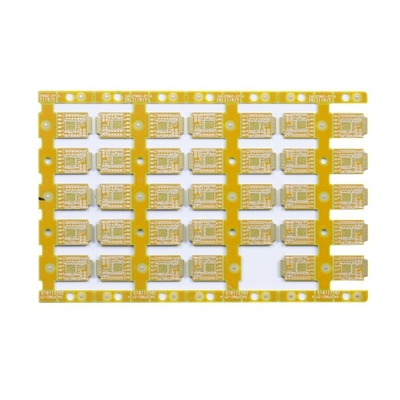

0.8mm 4 Layer HDI PCB Board Yellow Color 1OZ Finished Immersion Gold
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | 4L 1+N+1 HDI Boards | Marterial | FR4 TG170 |
|---|---|---|---|
| Board Layer | 4L | Board Thickness | 0.8mm |
| Copper Thickness | 1/1/1/1OZ Finished | Min.PCB Track/gap | 5/5mil |
| Solder Mask | Yellow, Both Sides | Smallest Mechanical Drilling Hole | 0.2mm |
| Special Request | Impedance Control/half Hole/resin Filled And Plated Over | Application | Communications |
| High Light | 0.8mm 1OZ HDI PCB Board,0.8mm 4L HDI PCB Board,0.8mm FR4 hdi board |
||
Product Description
0.8mm 4 Layer HDI PCB Board Yellow Color 1OZ Finished Immersion Gold
HDI PCB Board 4 Layer PCB HDI Printed Circuit Board PCB Yellow PCB Board Electronic PCB Board HDI PCB Design
4L 1+N+1 HDI Boards
What’s HDI PCB? High-density interconnect (HDI) PCBs are characterized by finer lines, closer spaces, and more dense wiring, which allow for a faster connection while reducing the size and bulk of a project. These boards also feature blind and buried vias, laser ablated microvias, sequential lamination, and via in-pads.
A HDI board can house the functionality of the previous boards used. MADPCB is an HDI PCB manufacturer and provider in Shenzhen, China supports HDI PCB prototype and mass production with less expensive price and quick-turn lead time. Customers from a variety of industries we serve have a common that have high expectations in quality, reliability and on-time delivery in HDI PCB production. Our quality is not afterthought, but built into each process from front-end to fabrication and shipping.
| Circuit board Layer count: | 4L | Circuit board laminate: | FR4 TG170 |
| Layer Copper thick: | 1/1/1/1OZ | Board thickness: | 0.8MM |
| Smallest hole size: | 0.20mm | Smallest PCB track/gap: | 5/5mil |
| Solder mask color: | YEYO Yellow | Silk screen color: | White |
| PCB surface finished: | Immersion Gold | Board profile: | Routing/V-CUT |
| PCB Board Application: | communications | ||
| Requesting Special requirement: | HDI Buried vias and blind vias, one step stack up /impedance control/half hole/resin filled and plated over/0.25mm BGA | ||
FAQ:
Q1:Could you provide PCB Assembly services and components sourcing?
A: Yes, we could also provide components sourcing and PCB Assembly services as well as box build if request.
Q2:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran, Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India etc.
Q3:Will our PCB files be checked.
A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any inquires, we will contact you and solve the problems together.
Q4: Does our product will be tested before shipment.
A: Yes. We could provide Function Circuit Testing if you provide us the testing methods.
Q5:Which payment method do you accept?
A: Wire Transfer(T/T), Letter of Credit(L/C), or Paypal( Paypal is only for small value less than 500usd)
