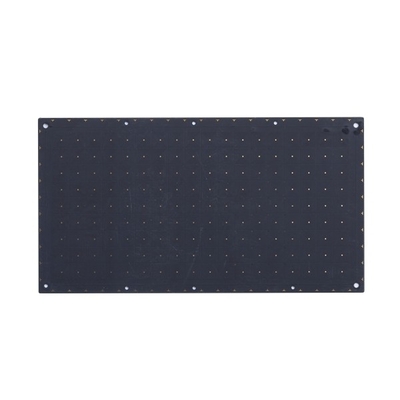

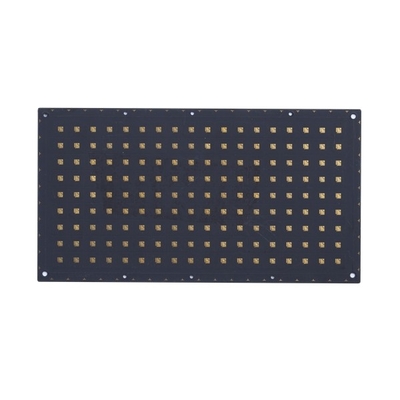

Black Solder Mask Ultra Thin PCB TG135 Fr4 Double Sided Pcb Circuit Board 1OZ
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | 2L Black Printed Circuit Board | Marterial | FR4 TG135 |
|---|---|---|---|
| Surface Finished | Immersion Gold 2u | Board Thickness | 0.4mm |
| Copper Thickness | 1/1OZ Finished | Min. Line Distance/space | 1/0.5mm |
| Solder Mask | Black Color | Smallest Mechanical Drilling Hole | 0.4mm |
| Special Requirement | Resin Filled And Plated Over | Applicationcommunications Products | Communications Products |
| High Light | TG135 Ultra Thin PCB,0.4mm Fr4 Ultra Thin PCB,TG135 Fr4 Double Sided Pcb |
||
Product Description
Black Solder Mask Ultra Thin PCB TG135 Fr4 Double Sided Pcb Circuit Board 1OZ
Ultra Thin PCB Black Solder Mask Resin Plugged Hole And Plating Over FR4 Double Sided PCB Thin PCB Board
2L Black Printed Circuit Board
HSX products cover 1~32L FR-4 PCB, IMS PCB,HDI Boards, high frequency PTFE boards and Rigid-flex boards etc. It provides flexible quick turn production services (12 hours to72 hours), as well as small volume to big volume PCB manufacturing.Products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.
Our Advantages:
1)Professional manufacturing PCB for 10 years
2)High-end positioning, professional production line
3)Stable and mature manufacturing technology
4)High reliability quality assurance
5)Comprehensive market service system
6)Quick response, fast delivery
| Layer counts: | 2 layer | Circuit board laminate: | FR4 TG135 |
| Different Copper thickness: | 1/1OZ | PCB Board thick: | 0.4 MM |
| Smallest Mechanical drilling hole: | 0.20 mm | Min. line distance/space: | 1/0.5mm |
| Solder mask color: | Black color TAIYO | Legends' color: | None |
| PCB surface finished: | Immersion Gold | Board profile: | Milling |
| PCB Board Application: | communications | ||
| Requesting Special requirement: | resin filled and plated over | ||
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.
Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)
Q3:Are my PCB files safe when I submit them to you for manufacturing?
A: We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from your side, nor we'll share these files with any other 3rd parties. And we could sign NDA with client if necessary.
Q4:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q5:What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
Q6:What payment do you accept ?
A: Wire Transfer(T/T) or Letter of Credit(L/C) or Paypal(only for small value less than 500usd)
