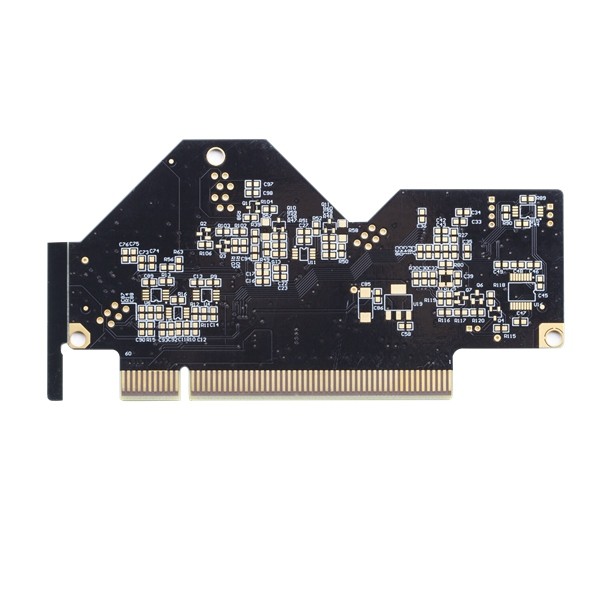

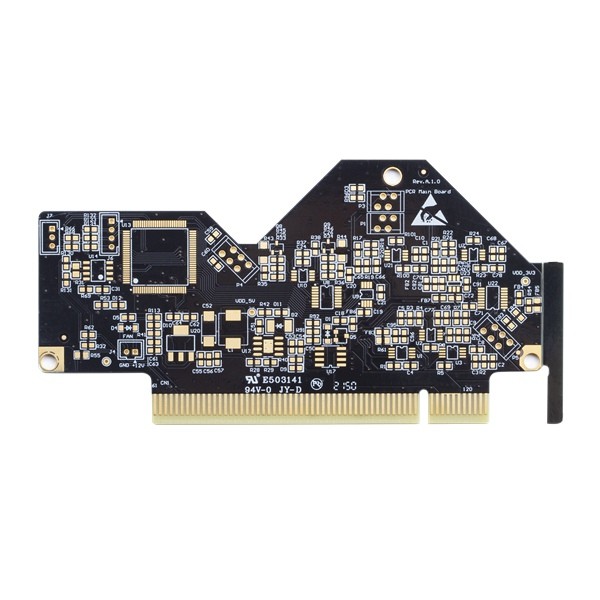

5mil Rapid Black Quick Turn Printed Circuit Boards Gold Finger Plating FR4 TG150

5mil Rapid Black Quick Turn Printed Circuit Boards Gold Finger Plating FR4 TG150

Quick Turn PCB Boards Gold Finger PCB Plating Gold PCB Rapid Black PCB Pcb Design And Assembly

4L Fast Multilayer Gold Finger PCB

HSX Circuit covers a total production area of 10,000 square meters, employs over 350 workers, and produce more than over 5,000 PCB types every month. Our products are widely used in many industries, communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace, etc.

Max layers is 32layer (≥20 layer needs to review)

The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review the board

Min finish panel size is 5 * 5mm

PCB material includes PI +FR4,FR4, Rogers, etch

PCB thickness capability is 0.2~4.0mm(needs to review when <0.2 mm, or >4 mm ) (and can not do HASL surface with board thickness </=0.6mm)

Copper thickness of inner and outer base copper capability: Min 0.3/0.5oz,Max 3oz, advance 4-6oz

Bow and twist tolerance: 0.075%

Min. hole size: 0.15mm(need to review the board if smaller than 0.15 mm )

HDI Min drill hole capability: 0.08-0.10MM

PCB track/gap capability: 3mil(0.075mm)

PCB outline method: Routing/V-CUT/Punching

Solder mask thickness capability: standard 15-20um; Advanced: 35um

Min solder mask bridge width capability: green 4mil,other colour 4.8mil

Solder mask filling holes capability: 0.1-0.5mm

The color of solder mask covers green, matt green, blue, matt blue, black, matt black, yellow, red, white, etc

PCB silkscreen includes white, Black and as your request

Peelable mask thickness capability: 500-1000um

Oxidation film of OSP capability: 0.2-0.5um

HSX Circuit’s Advantages:

1)Professional manufacturing PCB for 10 years

2)High-end positioning, professional production line

3)Stable and mature manufacturing technology

4)High reliability quality assurance

5)Comprehensive market service system

6)Quick response, fast delivery

FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.

Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)

Q3:Will our PCB files be checked.
A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any inquires, we will contact you and solve the problems together.

Q4: Does our product will be tested before shipment.
A: Yes. We could provide Function Circuit Testing if you provide us the testing methods.

Q5: Do you provide PCB Assembly services, too?
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
