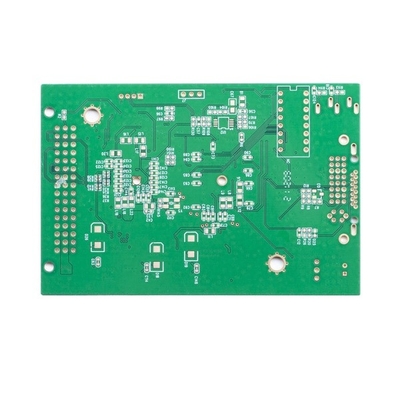

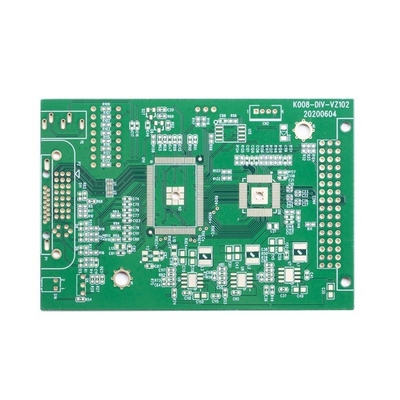

Immersion Gold Impedance Quick Turn PCB Boards Prototypes FR4 S1150G
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | 4 Layer Quick Turn Printed Circuit Board | Marterial | FR4 S1150G |
|---|---|---|---|
| Board Thickness | 1.6MM | Copper Thickness | 1/1/1/1OZ |
| Smallest Mechanical Drilling Hole | 0.2mm | Min. Line Distance/space | 4/4mil |
| Surface Finished | Immersion Gold | Solder Mask | Green |
| Special Requirement | Impedance Control | Applicationcommunications Products | Industrial Control Devices |
| High Light | S1150G Quick Turn PCB Boards,ODM Quick Turn PCB Boards,S1150G quick turn pcb prototypes |
||
Product Description
Immersion Gold Impedance Quick Turn PCB Boards Prototypes FR4 S1150G
Quick Turn PCB Boards Immersion Gold Impedance Control Unit Circuit Board Quick Turn Sample Demand Fast Prototype
4 Layer Quick Turn Printed Circuit Board
PCB thickness capability is 0.2~4.0mm(needs to review when <0.2 mm, or >4 mm ) (and can not do HASL surface with board thickness </=0.6mm)
Copper thickness of inner and outer base copper capability: Min 0.3/0.5oz,Max 3oz, advance 4-6oz
Bow and twist tolerance: 0.075%
Min. hole size: 0.15mm(need to review the board if smaller than 0.15 mm )
HDI Min drill hole capability: 0.08-0.10MM
PCB track/gap capability: 3mil(0.075mm)
PCB outline method: Routing/V-CUT/Punching
Solder mask thickness capability: standard 15-20um; Advanced: 35um
Min solder mask bridge width capability: green 4mil,other colour 4.8mil
Solder mask filling holes capability: 0.1-0.5mm
The color of solder mask covers green, matt green, blue, matt blue, black, matt black, yellow, red, white, etc
PCB silkscreen includes white, Black and as your request
Peelable mask thickness capability: 500-1000um
Oxidation film of OSP capability: 0.2-0.5um
| Layer counts: | 4 layer | Circuit board laminate: | FR4 |
| Different Copper thickness: | 1/1/1/1OZ | PCB Board thick: | 1.6 MM |
| Smallest Mechanical drilling hole: | 0.20 mm | Min. line distance/space: | 4/4mil |
| Solder mask color: | Green color KSM | Legends' color: | White color |
| PCB surface finished: | Immersion Gold | Board profile: | Milling |
| PCB Board Application: | industrial control | ||
| Requesting Special requirement: | impedance control | ||
FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.
Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)
Q3:Are my PCB files safe when I submit them to you for manufacturing?
A: We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from your side, nor we'll share these files with any other 3rd parties. And we could sign NDA with client if necessary.
Q4:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q5:What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
Q6:What payment do you accept ?
A: Wire Transfer(T/T) or Letter of Credit(L/C) or Paypal(only for small value less than 500usd)
