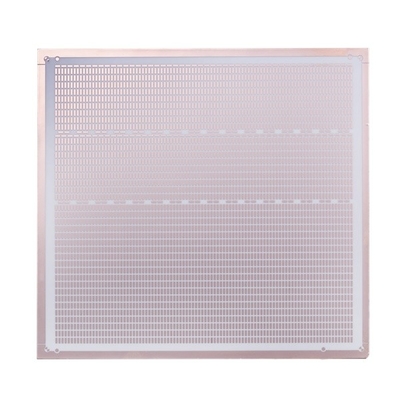

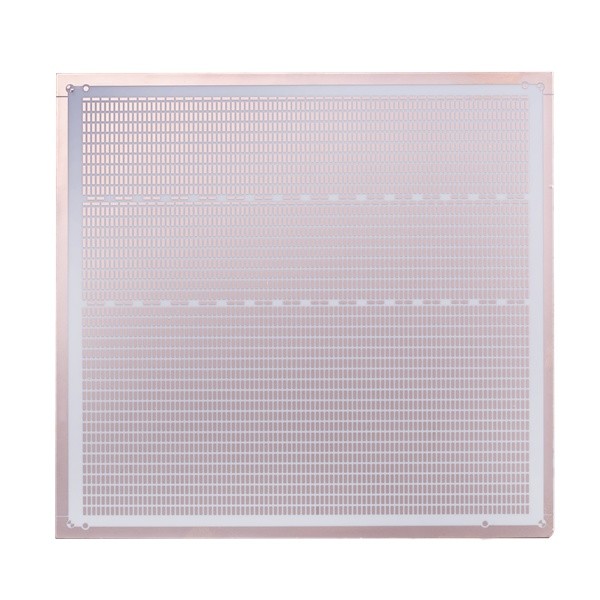

High Frequency Ceramic PCB Board 2.4mm Immersion Gold For LED Light
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | Immersion Gold Ceramic Base Circuit | Marterial | High TG FR-4; |
|---|---|---|---|
| Surface Finished | Immersion Gold, LF-HASL, OSP... | Board Thickness | 2.4mm |
| Copper Thickness | 18um-105um | Solder Mask | Green;blue;black;red... |
| High Light | 2.4mm Ceramic PCB Board,FR4 2.4mm Ceramic PCB Board,2.4mm led bulb circuit board |
||
Product Description
High Frequency Ceramic PCB Board 2.4mm Immersion Gold For LED Light
Ceramic PCB Board Immersion Gold Ceramic Base PCB Ceramic Base Material High Density PCB

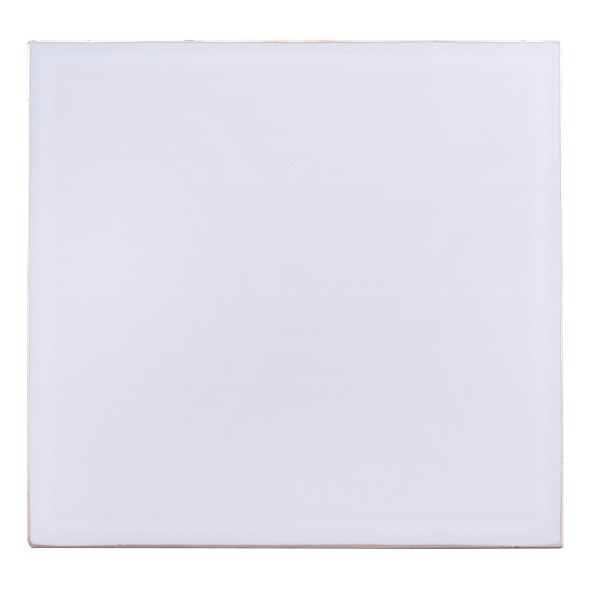

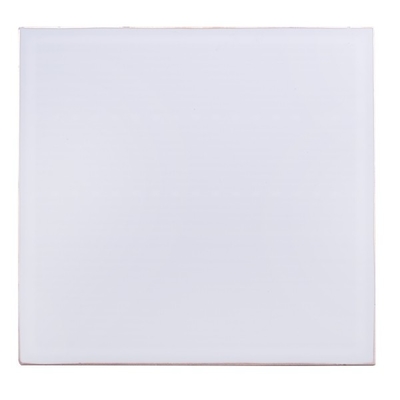

Immersion Gold Ceramic Base Circuit
Ceramic PCB have good high-frequency and electrical performance, and have high thermal conductivity, excellent chemical and thermal stability. Excellent corrosion resistance, it widely used in semiconductor and microelectronic circuit packaging pcb, High-brightness Led chip carrier board, automotive electronics and lighting components, high-power electronic component heat dissipation materials, etc.
Ceramic PCBs provide best source of reacting point for printed circuits due to two reasons, high thermal conductivity and low coefficient of thermal expansion (CTE). The ceramic PCB is highly unique and useful because it is a complete replacement of traditional printed circuit boards having simple structure and increased performance.
Characteristics of Ceramic PCB:
1. Ceramic printed circuit boards are excellent heat conductors.
2. Ceramic circuit boards are not easily eroded by chemicals.
3. Ceramic PCBs provide a high level of mechanical compatibility.
4. High-density outlining is simple on ceramic boards.
5. Their CTA component compliance is excellent.
| Items | Normal standard |
| Material | FR-4;High TG FR-4; Ceramic base material |
| Layer NO. | 1-20 |
| Board Size | 50mm*50mm-560mm*640mm |
| Board Thickness | 0.4mm-4.0mm |
| Thickness Tolerance | ±10% |
| Min Hole Size | 0.15mm |
| Copper Thickness | 18um-105um |
| Copper Plating hole | 18um-30um |
| Min Trace Width | 0.1mm |
| Min Space Width | 0.1mm |
| Solder Mask Color | green;blue;black;red... |
| Surfae | Immersion gold, LF-HASL, OSP... |
| Outline profile | CNC; V-CUT; Punching |
| Impedance Control | ±10% |
| certificate | ISO9001 |
FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.
Q2:How about your PCB factory production capacity?
A: Our monthly production capacity is 50,000 square meter/month and 5000types/month.
Q3:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q4:How will you usually ship the PCB?
A: Usually for small packages, we will ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
Q5:What is your standard lead time for production?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
