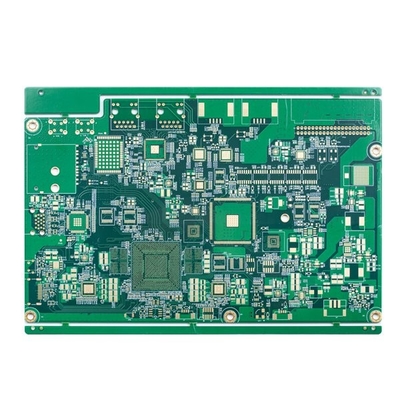

Immersion Gold 2u 10 Layer Printed Circuit Board FR4 TG170 Marterial Resin Plugged Hole
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Layer | 10 Layer PCB Resin Plugged Hole Board | Marterial | FR4 TG170 |
|---|---|---|---|
| PCB Surface | Immersion Gold 2u | Solder Mask | TAIYO Green Both Sides |
| Application | Digital Products | Lead Time | Fastest 24H For 2L And 4L |
| High Light | TG170 10 layer printed circuit board,FR4 10 layer printed circuit board,Resin Plugged Hole 10 layer pcb |
||
Product Description
Multilayer Printed Circuit Board 10L Board Resin Plugged Hole Board Impedance Control small BGA
10 Layer PCB Resin Plugged Hole Board
Max layers: 32layer (≥20 layer needs to review)
Max finish panel size: 740* 500 MM(>600 MM needs to review)
Min finish panel size: 5 * 5mm
PCB material: PI +FR4,FR4, Rogers
PCB thickness: 0.2~4.0mm(＜0.2 mm,＞4 mm needs to review) (Board thickness ≤ 0.6mm,do not apply for HASL surface)
copper thickness of inner and outer base copper: Min 0.3/0.5oz,Max 3oz, advance 4-6oz
Bow and twist: 0.075%
Min. hole size: 0.15mm(＜0.15 mm needs to review)
HDI Min drill hole: 0.08-0.10MM
PCB track/gap: 3mil(0.075mm)
PCB outline: Routing/V-CUT/Punching
Solder mask thickness: standard 15-20um; Advanced: 35um
Min solder mask bridge width: green 4mil,other colour 4.8mil
Solder mask filling holes: 0.1-0.5mm
The color of solder mask: green,matt green,blue,matt blue,black,matt black,yellow,red,white,etc
PCB silkscreen: White, Black and as your request
Peelable mask thickness: 500-1000um
Oxidation film of OSP: 0.2-0.5um
| Circuit board Layer count: | 10 L | Circuit board laminate: | FR4 TG170 |
| Layer Copper thick: | Outer 1oz Inner 1oz | Board thickness: | 1.6MM |
| Smallest hole size: | 0.20mm | Smallest PCB track/gap: | 4/4mil |
| Solder mask color: | TAIYO Green | Silk screen color: | White |
| PCB surface finished: | Immersion Gold | Board profile: | Routing |
| PCB Board Application: | digital products | ||
| Requesting Special requirement: | impedance control/resin filled and plated over/0.25mm BGA | ||
FAQ:
Q1:What is your minimum order quantity?
A: No MOQ.The quantity will only affect the price. Please contact us for RFQ.
Q2:How will you usually ship the PCB?
A: Usually for small packages, we will ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
Q3:How about your PCB factory production capacity?
A: Our monthly production capacity is 50,000 square meter/month and 5000types/month.
Q4:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran, Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India etc.
Q5: Do you provide PCB Assembly services, too?
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
