Blank Multilayer Printed Circuit Board OSP Surface 0.3mm Epoxy Plugged Vias

Multilayer Printed Circuit Board Print Circuit Board Blank Circuit Board Epoxy Plugged Vias

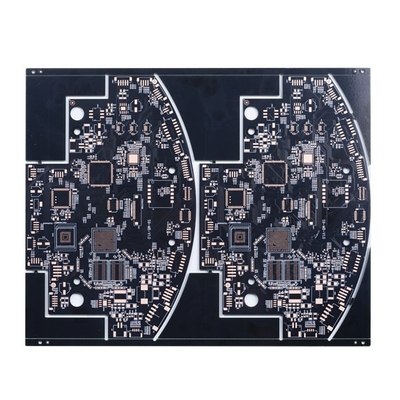

4L Black PCB with Epoxy Plugged Vias

Founded in 2010, Shenzhen Huashengxin Circuit is a professional manufacturer for printed circuit boards. HSX Circuit provides flexible quick turn production services (12hours to 72 hours), as well as small volume to big volume PCB manufacturing. Its products covers 1~32L FR-4 PCB, IMS PCB, HDI Boards, high frequency PTFE boards and Rigid-flex boards etc.

Its products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace, and so on.

Max layers: 32layer (if more than 20 layer,  needs to review the capability)

Max finish panel size: 740* 500 MM(if larger than 600 MM, needs to review capability)

Min finish panel size: 5 * 5mm
Raw material: PI +FR4,FR4, Rogers, AI and so on
PCB finished board thickness: 0.2~4.0mm( if less than 0.2 mm, or more than 4 mm needs to review) (if board thickness ≤ 0.6mm, can not apply for HASL surface)

Copper thickness of inner and outer base copper: Min 0.3/0.5oz,Max 3oz, advance 4-6oz

Finished outer copper: 6oz

Bow and twist: 0.075%

Min. hole size: 0.15mm(＜0.15 mm needs to review the capability)

HDI Min drill hole: 0.08-0.10MM
PCB track/gap: 3mil(0.075mm)
PCB outline: Routing/Punching/V-CUT

Solder mask thickness: standard 15-20um; Advanced: 35um

Min solder mask bridge width: green 4mil,other colour 4.8mil

Solder mask plugged holes: 0.1-0.5mm

The color of solder mask: green,matt green,blue,matt blue,black,matt black,yellow,red,white, and so on
PCB silkscreen: White, Black and  so on

Peelable mask thickness: 500-1000um
Oxidation film of OSP: 0.2-0.5um


FAQ:

Q1. What service can you provide?

A: Rigid Printed Circuit board, Flexible PCB, HDI board, Copper base printed circuit board, Printed Circuit Assembly, Rapid Prototype, Quick-turn order.

Q2. How fast is your lead time?

A: Fastest 3 WDs for HDI board, fastest 24H for standard 2L and 4LRigid board.

Q3. How can I get a quote?

A: You can ask for a traditional quotation request by sending email to our email box lenayang@hsxcircuit.com or sales07@hsxcircuit.com and we will quote it normally within 24 hours(special project will need more time), do not forget to enclose your Gerber files and all other necessary files for PCB quotation.

And also, you can contact us directly in the website by providing gerber file and specification.

Q4.What payment terms do you accept?

A: Wire Transfer(T/T) or Letter of Credit(L/C) or Paypal(only for small value less than 500usd)
