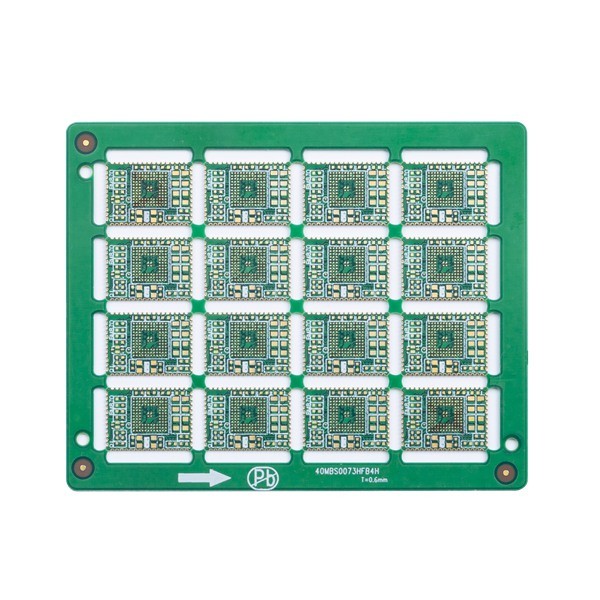

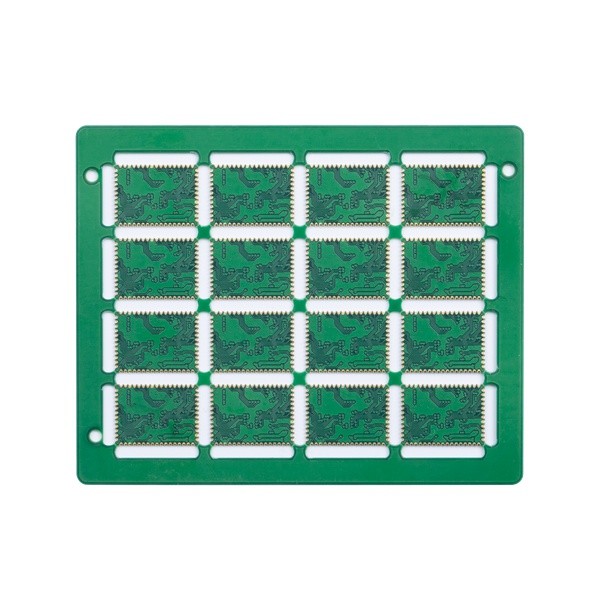

IPC Standard Green Printed Circuit Board 6 Layer Electroless Nickel Immersion Gold

Multilayer Printed Circuit Board Carbon Printing Electroless Nickel Immersion Gold Half Hole IPC Standard

6L GREEN PCB HALF HOLE

Rigid PCB is a kind of Printed Circuit Board and is the largest number of PCB manufactured. It is made of solid substrate material, which can effectively prevent the distortion of the circuit board. Perhaps the most common rigid PCB is the computer motherboard. The motherboard is a multi-layer PCB designed to distribute power from the power supply while allowing communication between all components of the computer, such as CPU, GPU, and RAM.

Rigid PCB can be used in any position where the PCB itself needs to be set to a shape and maintained during the remaining life of the equipment

Rigid PCB and Flexible PCB are totally different. And their application scenarios are different.

FAQ:

Q1:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)

Q2. What any other information should be offered except for file?

A: Following specifications are needed for quotation:
1) Base material
2) Board thickness:
3) Copper thickness
4) Surface treatment:
5) color of solder mask and silkscreen
6) Quantity

Q3. No PCB file/GBR file, only have the PCB sample, can you produce it for me?

A: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q4. What’s the BOM?

A: BOM is a Bill of Materials that list the components required to build your project. BOM’s include part number, brand, reference designator , quantity, and description of parts that need to be assembled.

Q5. Where are your circuit boards manufactured?

A: As a China-based professional PCB manufacturer, all circuit boards are manufactured in China.
