Rigid Multilayer Printed Circuit Board FR4 94V0 ENIG Surface Green Solder Mask
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Layer | 8L GREEN PCB WITH ENIG SURFACE | Marterial | TG150 |
|---|---|---|---|
| PCB Surface | Electroless Nickel Immersion Gold/ENIG/Immersion Gold | Solder Mask | Green |
| Smallest PCB Track/gap | 4/4mil | Smallest Hole | 0.25mm |
| ApplicationIndustrial Control Products | Digital Product | Special Requirement | IPC Class3/Resin Plugged Hole And Plating Over |
| High Light | Rigid Multilayer Printed Circuit Board,Multilayer Printed Circuit Board ENIG Surface,94V0 Rigid Printed Circuit Board |
||
Product Description

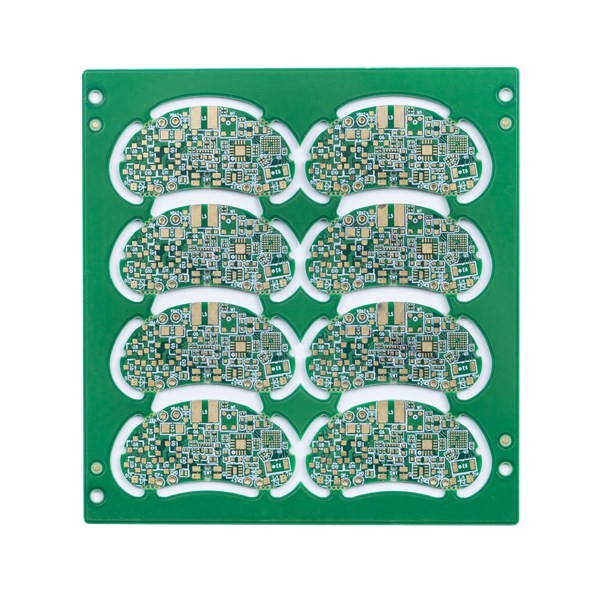

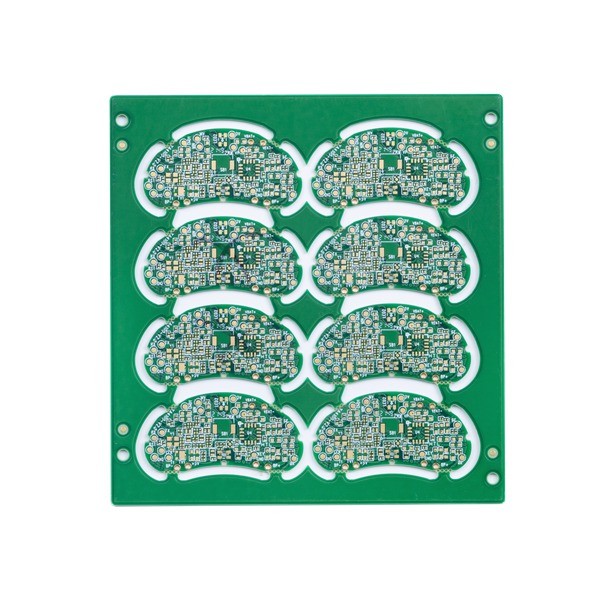

Multilayer Printed Circuit Board Rigid PCB Rigid Circuit FR4 94V0 With ENIG Surface And Green Solder Mask
8L GREEN PCB WITH ENIG SURFACE
Rigid PCBs are a form of printed circuit board which are solid and inflexible in their structure, and therefore they cannot be bent or flexed. They’re made up of several different layers, including a substrate layer, a copper layer, a solder mask layer and a silk screen layer, which are joined together via adhesive and heat.
Printed circuit boards include single layer, double layer and multilayer circuit, rigid PCBs can take any of these forms depending on the requirements needed. However, once they have been manufactured they cannot be modified or changed.
Applications of Rigid PCBs:
- Computers and Laptops
- Telecommunications Equipment – Mobile Phone, Tablets and different Hand Help Devices
- File server and Data storage
- Signal transmission, cell, smartphone repeaters, GPS
- Satellite
- Medical Equipment: Testing, X-Ray, Heart Monitor, CAT Scan
- Industrial Equipment
- Atomic and Nuclear Systems
- Military and Defense Equipment
- Automotive
- Aerospace
| Circuit board Layer count: | 8L | Circuit board Raw Material: | FR4, TG150 |
| Layer Copper thick: | 1/1/1/1/1/1/1/1OZ | Board thickness: | 1.6MM |
| Smallest hole size: | 0.25mm | Smallest PCB track/gap: | 4/4mil |
| Solder mask color: | Green | Silk screen color: | White |
| PCB surface finished: |
Immersion gold |
Board profile: | Routing/V-CUT |
| PCB Board Application: |
Industrial products |
||
| Requesting Special requirement: | IPC class3/Resin Plugged Hole and Plating Over | ||
FAQ:
Q1:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)
Q2. What any other information should be offered except for file?
A: Following specifications are needed for quotation:
1) Base material
2) Board thickness:
3) Copper thickness
4) Surface treatment:
5) color of solder mask and silkscreen
6) Quantity
Q3. No PCB file/GBR file, only have the PCB sample, can you produce it for me?
A: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q4. What’s the BOM?
A: BOM is a Bill of Materials that list the components required to build your project. BOM’s include part number, brand, reference designator , quantity, and description of parts that need to be assembled.
Q5. Where are your circuit boards manufactured?
A: As a China-based professional PCB manufacturer, all circuit boards are manufactured in China.
