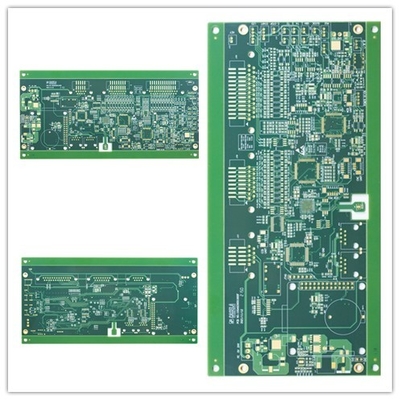

FR4 BGA Quick Turn PCB Fabrication 6 Layer For Digital Product
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | Quick Turn PCB Boards | Marterial | FR4 |
|---|---|---|---|
| Surface Finished | Immersion Gold, Gold Finger | Board Thickness | 1.6MM |
| Copper Thickness | 1/1/1/1/1/1OZ | Min. Line Distance/space | 8/8mil |
| Solder Mask | Green Solder Mask | Smallest Mechanical Drilling Hole | 0.3mm |
| Applicationcommunications Products | Digital Product | ||
| High Light | BGA Quick Turn PCB Fabrication,Digital Product quick turn pcb fabrication,6 layer circuit board 1.6MM |
||
Product Description
FR4 BGA Quick Turn PCB Boards 6 Layer For Digital Product
Advantages:
1)Professional manufacturing PCB for 10 years
2) High-end positioning, professional production line
3) Stable and mature manufacturing technology
4) High reliability quality assurance
5) Comprehensive market service system
6) Quick response, fast delivery
Copper thickness of inner and outer base copper capability: Min 0.3/0.5oz,Max 3oz, advance 4-6oz
Application of PCB Printed Circuit Board:
1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense
8, Automotive
9, Smart Home
| Layer counts: | 6 layer | Circuit board laminate: | FR4 |
| Different Copper thickness: | 1/1/1/1/1/1OZ | PCB Board thick: | 1.0 MM |
| Smallest Mechanical drilling hole: | 0.30 mm | Min. line distance/space: | 8/8mil |
| Solder mask color: | Green | Legends' color: | White |
| PCB surface finished: | Immersion Gold | Board profile: | Milling |
| PCB Board Application: | digital products | ||
| Requesting Special requirement: | impedance control/0.25mm BGA/big au area | ||
FAQ:
Q1:Could you provide PCB Assembly services and components sourcing?
A: Yes, we could also provide components sourcing and PCB Assembly services as well as box build if request.
Q2:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran, Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India etc.
Q3:Are my PCB files safe when I submit them to you for manufacturing?
A: We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from your side, nor we'll share these files with any other 3rd parties. And we could sign NDA with client if necessary.
Q4:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
