Prototype Quick Turn PCB Boards 1.6mm Blue Solder Resist FR4 TG170

1.6mm Blue Solder Resist Quick Turn Prototype PCB Boards FR4 TG170

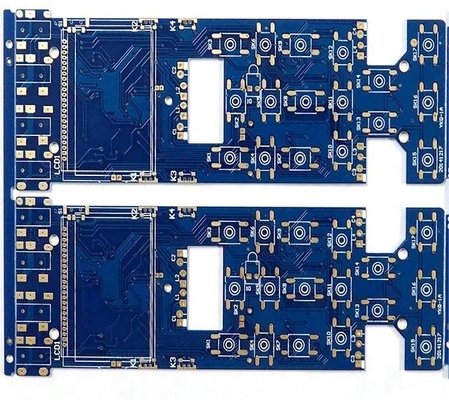

4L TG170 Blue Solder Mask Board

HSX Circuit covers a total production area of 10,000 square meters, employs over 350 workers, and produce more than over 5,000 PCB types every month. Our products are widely used in many industries, communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace, etc.

Max layers is 32layer (≥20 layer needs to review)

The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review the board

Min finish panel size is 5 * 5mm

PCB material includes PI +FR4,FR4, Rogers, etch

PCB thickness capability is 0.2~4.0mm(needs to review when <0.2 mm, or >4 mm ) (and can not do HASL surface with board thickness </=0.6mm)

Copper thickness of inner and outer base copper capability: Min 0.3/0.5oz,Max 3oz, advance 4-6oz

Bow and twist tolerance: 0.075%

Min. hole size: 0.15mm(need to review the board if smaller than 0.15 mm )

HDI Min drill hole capability: 0.08-0.10MM

PCB track/gap capability: 3mil(0.075mm)

PCB outline method: Routing/V-CUT/Punching

Solder mask thickness capability: standard 15-20um; Advanced: 35um

Min solder mask bridge width capability: green 4mil,other colour 4.8mil

Solder mask filling holes capability: 0.1-0.5mm

The color of solder mask covers green, matt green, blue, matt blue, black, matt black, yellow, red, white, etc

PCB silkscreen includes white, Black and as your request

Peelable mask thickness capability: 500-1000um

Oxidation film of OSP capability: 0.2-0.5um

HSX Circuit’s Advantages:

1)Professional manufacturing PCB for 10 years

2)High-end positioning, professional production line

3)Stable and mature manufacturing technology

4)High reliability quality assurance

5)Comprehensive market service system

6)Quick response, fast delivery

FAQ:

Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.

Q2:How about your PCB factory production capacity?
A: Our monthly production capacity is 50,000 square meter/month and 5000types/month.

Q3:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q4:How will you usually ship the PCB?
A: Usually for small packages, we will ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.

Q5:What is your standard lead time for production?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
