quick turn Single Sided Printed Circuit Board ISO9001 IATF16949 Approved

Quick Turn Single Sided Printed Circuit Board ISO9001 IATF16949 Approved

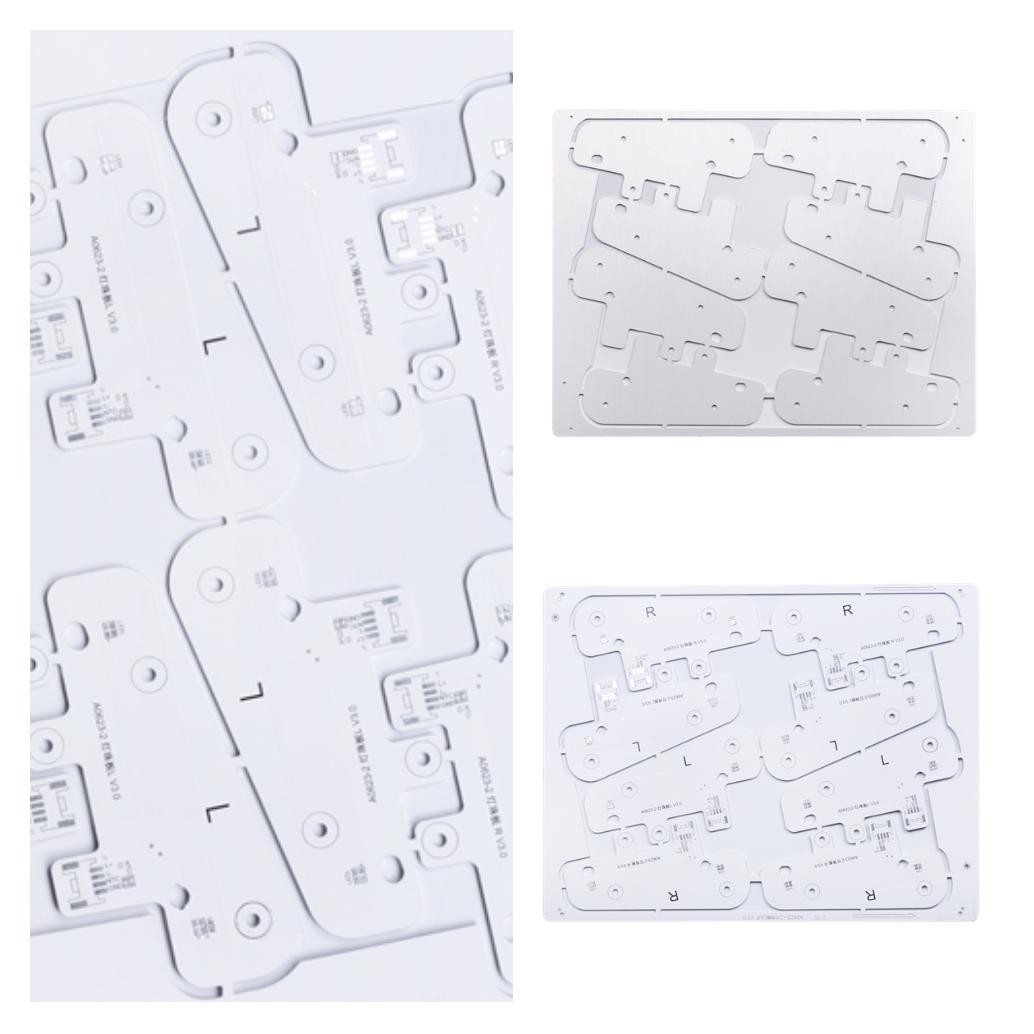

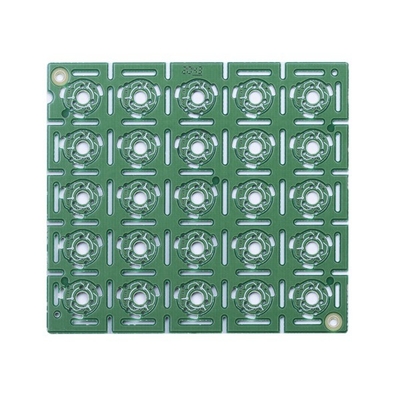

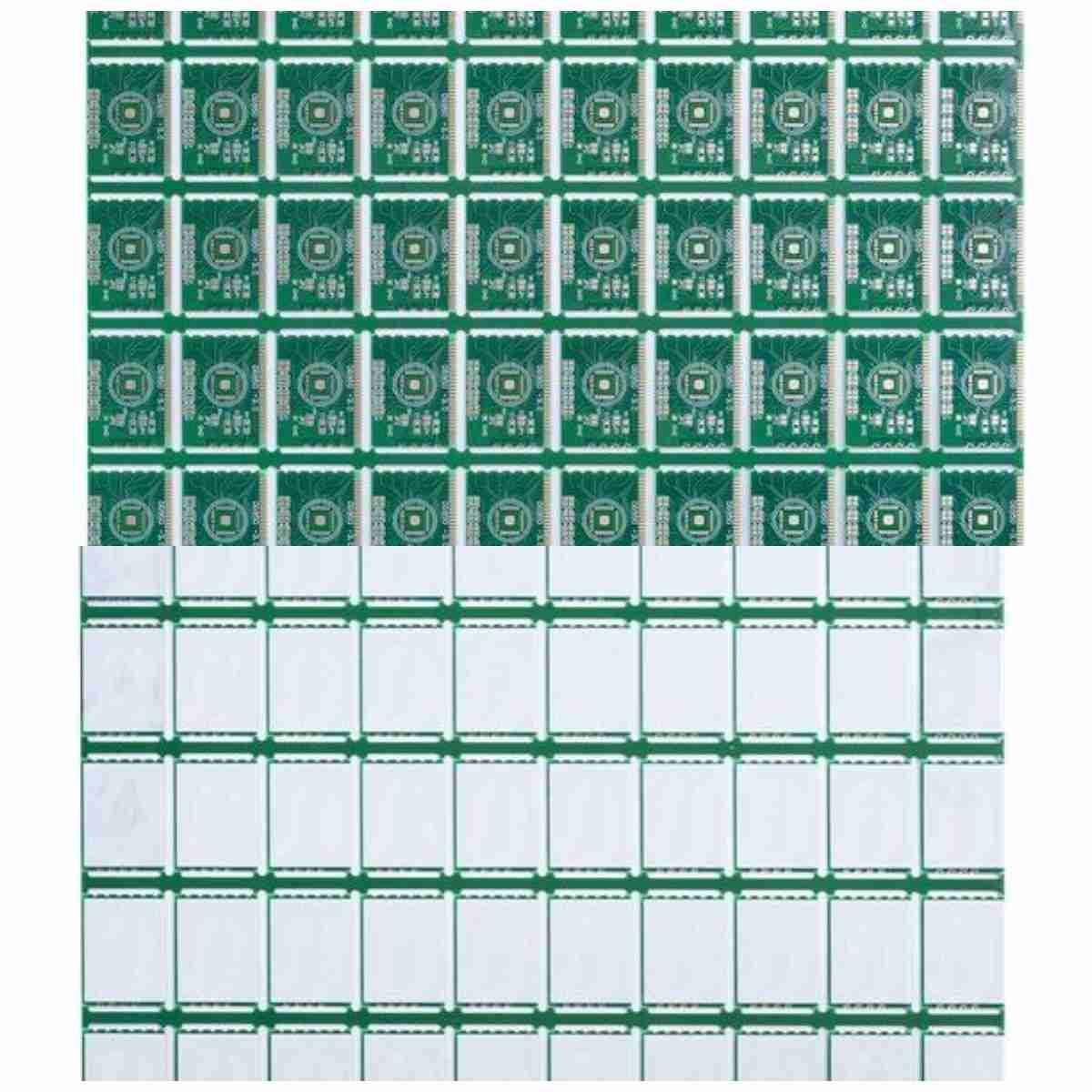

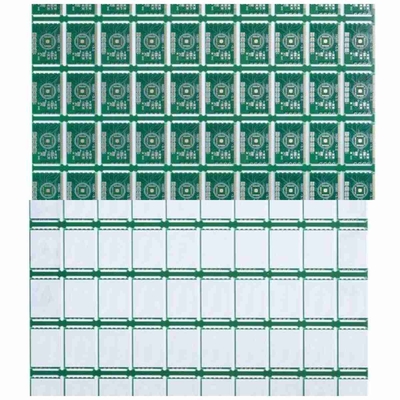

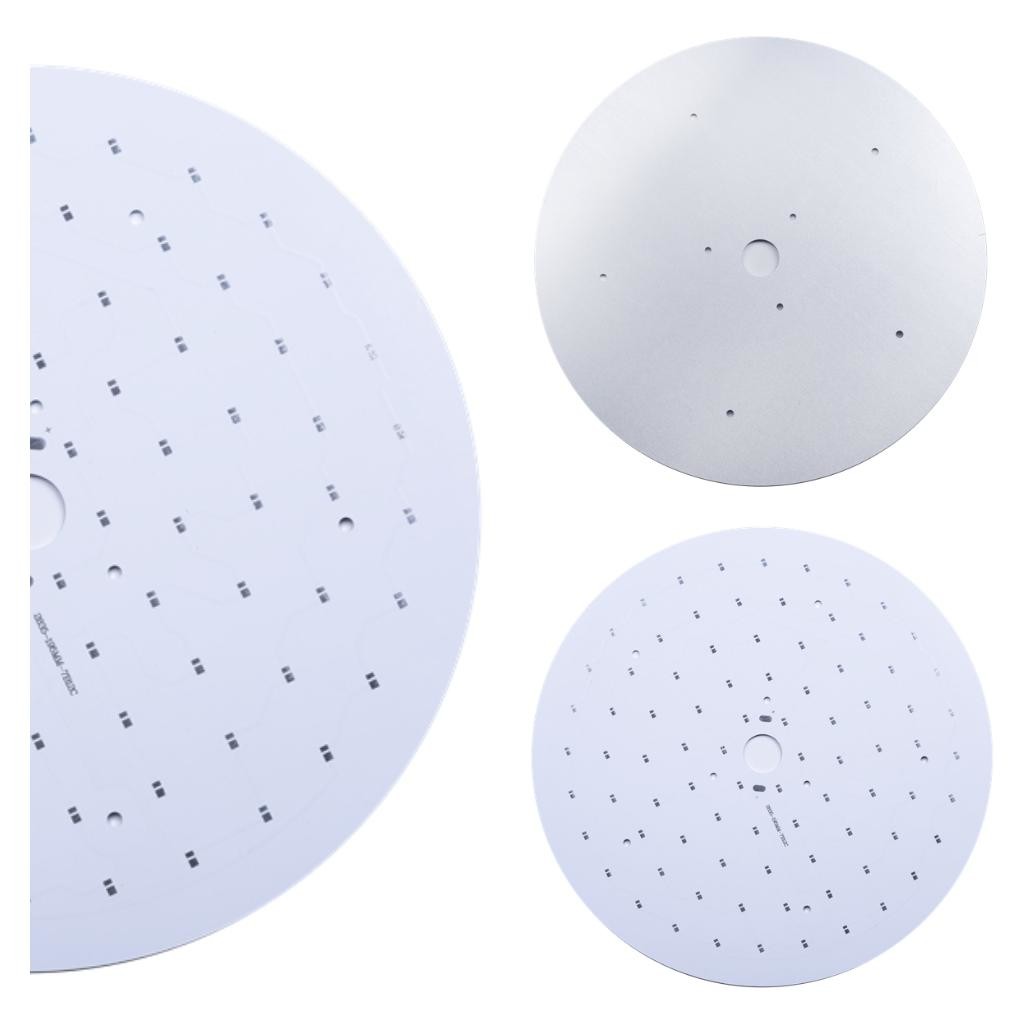

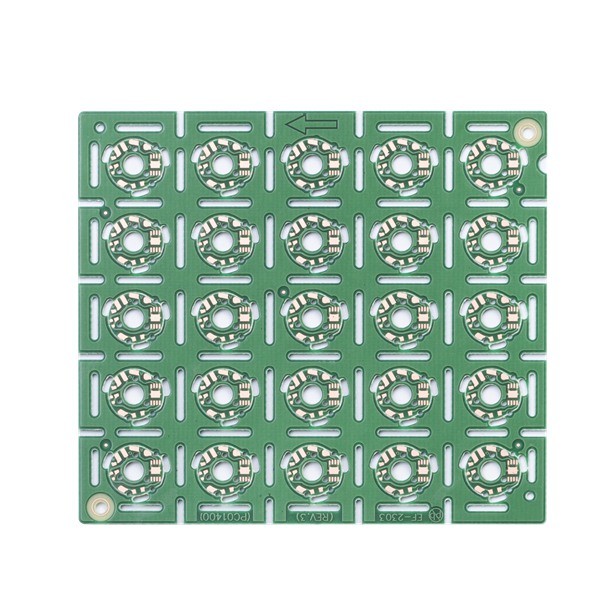

Single side PCB, Shenzhen Factory, ISO9001, IATF16949 approved

With capability of 30,000 square meter per month. Provide PCB manufacturing from quick turn to small volume to big volume. Have obvious price advantage.

For the quick turn PCB, We can provide 100% timely delivery.

Has almost all necessary certificates for the requests of Customers. Such as UL for America and Canada, ISO9001-2015 and IATF16949 and etc.

Looking forward to your reply.

Layers:1-32layer, if the layer is 20L or mare than 20L, will need to review the board.
The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.
The Minimum panel size is 5 * 5mm.
Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...
PCB thickness capability is from 0.2~4.0mm, if thickness less than 0.2 mm, or more than 4 mm, will needs to review.
PCB copper thickness capability is H~5oz. If more than 5oz, will need to review it at first.
Bow and twist tolerance is 0.075%.
The minimum hole size is 0.15mm, if drilling size is smaller than 0.15mm, will need to confirm the board at first.
The max hole size is 6.0mm, if hole size more than 6mm, will need to use milling to enlarge holes.
The color of printed circuit board include green, matt green,blue, matt blue, black, matt black, yellow, red, white, and so on.
The color of silkscreen color: include white, black and so on.
Printed circuit board surfaces include HASL lead free, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger,etc.
