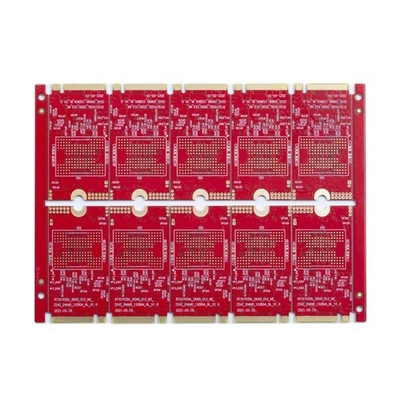

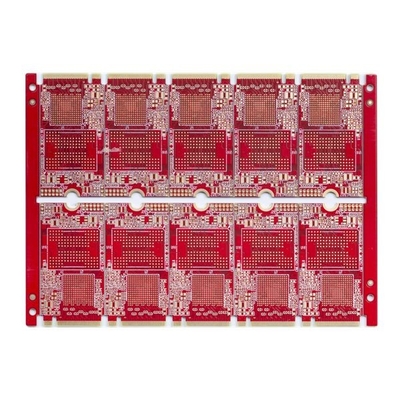

Gold Finger 30u Ultra Thin PCB Board 8 Layer Half Hole 0.25mm BGA

Gold Finger 30u Ultra Thin PCB Board 8 Layer Half Hole 0.25mm BGA

Ultra Thin PCB Immersion Gold Gold Finger 30u Impedance Control Half Hole 0.25mm BGA

8 layer Utra Thin PCB

Layers:1-32layer, if the layer is 20L or mare than 20L, will need to review the board.
The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.
The Minimum panel size is 5 * 5mm.
Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...
PCB thickness capability is from 0.2~4.0mm, if thickness less than 0.2 mm, or more than 4 mm, will needs to review.
PCB copper thickness capability is H~5oz. If more than 5oz, will need to review it at first.
Bow and twist tolerance is 0.075%.
The minimum hole size is 0.15mm, if drilling size is smaller than 0.15mm, will need to confirm the board at first.
The max hole size is 6.0mm, if hole size more than 6mm, will need to use milling to enlarge holes.
The color of printed circuit board include green, matt green,blue, matt blue, black, matt black, yellow, red, white, and so on.
The color of silkscreen color: include white, black and so on.
Printed circuit board surfaces include HASL lead free, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger,etc.

HSX products cover 1~32L FR-4 PCB, IMS PCB,HDI Boards, high frequency PTFE boards and Rigid-flex boards etc. It provides flexible quick turn production services (12 hours to72 hours), as well as small volume to big volume PCB manufacturing. Products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.

FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.

Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)

Q3:Will our PCB files be checked.
A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any inquires, we will contact you and solve the problems together.

Q4: Does our product will be tested before shipment.
A: Yes. We could provide Function Circuit Testing if you provide us the testing methods.

Q5: Do you provide PCB Assembly services, too?
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
