White Solder Mask Ultra Thin PCB Immersion Gold 0.8mm 4mil Impedance Control

Place of Origin China
Brand Name Huashengxin
Certification UL , ISO9001
Model Number 135359
Minimum Order Quantity 1pcs
Packaging Details vacuum
Delivery Time fastest 24 hours for 2L and 4L prototype, 3 days for HDI board production
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PCB Name 4 Layer Half Hole Impedance Control Thin PCB Marterial FR4 TG150
Surface Finished ENIG Board Thickness 0.8mm
Copper Thickness 1/1/1/1OZ Min. Line Distance/space 4/4mil
Solder Mask White Smallest Mechanical Drilling Hole 0.25mm
Special Requirement Impedance Control And Half Hole Applicationcommunications Products Industrial Control
High Light

0.8mm TG150 Ultra Thin PCB

,

4mil Ultra Thin PCB

,

TG150 4mil thin pcb board

Leave a Message
Product Description

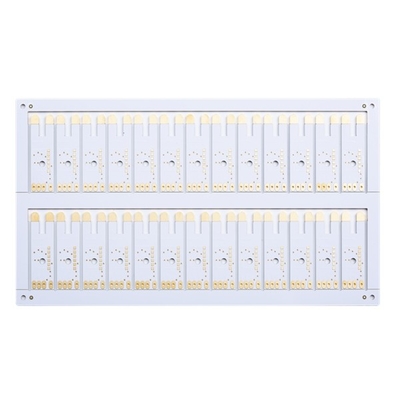

White Solder Mask Ultra Thin PCB Immersion Gold 0.8mm 4mil Impedance Control

Ultra Thin PCB Ultra Thin Printed Circuit Board White Solder Mask Industry Control Immersion Gold PCB

4 Layer Half Hole Impedance Control Thin PCB

Layers:1-32layer, if the layer is 20L or mare than 20L, will need to review the board.
The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.
The Minimum panel size is 5 * 5mm.
Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...
PCB thickness capability is from 0.2~4.0mm, if thickness less than 0.2 mm, or more than 4 mm, will needs to review.
PCB copper thickness capability is H~5oz. If more than 5oz, will need to review it at first.
Bow and twist tolerance is 0.075%.
The minimum hole size is 0.15mm, if drilling size is smaller than 0.15mm, will need to confirm the board at first.
The max hole size is 6.0mm, if hole size more than 6mm, will need to use milling to enlarge holes.
The color of printed circuit board include green, matt green,blue, matt blue, black, matt black, yellow, red, white, and so on.
The color of silkscreen color: include white, black and so on.
Printed circuit board surfaces include HASL lead free, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger,etc.


HSX products cover 1~32L FR-4 PCB, IMS PCB,HDI Boards, high frequency PTFE boards and Rigid-flex boards etc. It provides flexible quick turn production services (12 hours to72 hours), as well as small volume to big volume PCB manufacturing. Products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.


Circuit board Layer count: 4L Circuit board laminate: FR4
Layer Copper thick: 1/1/1/1OZ Board thickness: 0.8MM
Smallest hole size: 0.25mm Smallest PCB track/gap: 4/4mil
Solder mask color: White Silk screen color: None
PCB surface finished: Immersion Gold Board profile: Routing/V-CUT
PCB Board Application: industrial control
Requesting Special requirement: impedance control/half hole

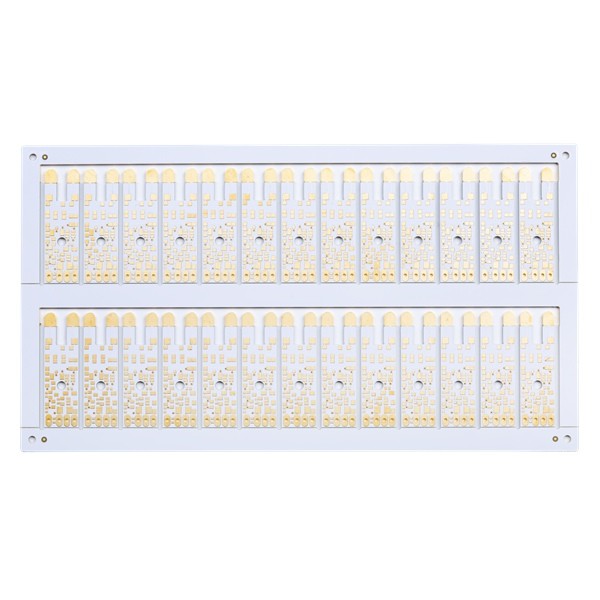

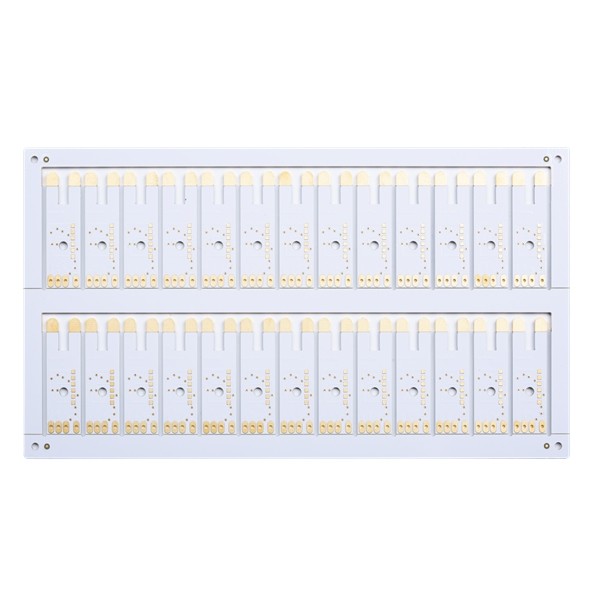

White Solder Mask Ultra Thin PCB Immersion Gold 0.8mm 4mil Impedance Control 0White Solder Mask Ultra Thin PCB Immersion Gold 0.8mm 4mil Impedance Control 1
FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.


Q2:How about your PCB factory production capacity?
A: Our monthly production capacity is 50,000 square meter/month and 5000types/month.


Q3:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.


Q4:How will you usually ship the PCB?
A: Usually for small packages, we will ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.


Q5:What is your standard lead time for production?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
