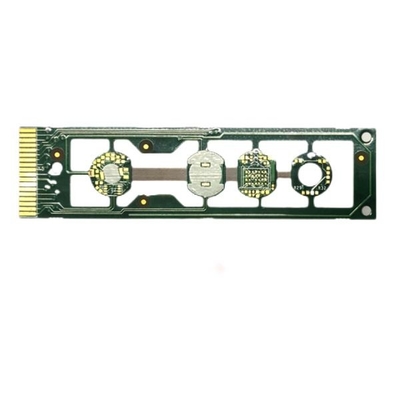

0.8mm Single Layer Rigid Flex PCB Quick Turn 0.5oz Laser Prototyping

  • 0.8mm Single Layer Rigid Flex PCB Quick Turn 0.5oz Laser Prototyping
  • 0.8mm Single Layer Rigid Flex PCB Quick Turn 0.5oz Laser Prototyping
  • 0.8mm Single Layer Rigid Flex PCB Quick Turn 0.5oz Laser Prototyping
Place of Origin China
Brand Name Huashengxin
Certification UL , ISO9001
Model Number Flexible Rigid PCB
Minimum Order Quantity 1pcs
Packaging Details vacuum
Delivery Time fastest 24 hours for 2L and 4L prototype, 3 days for HDI board production
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PCB Type Flexible Rigid Printed Circuit Board Surface Finished Immersion Gold
Board Thickness 0.8mm Copper Thickness 0.5oz
E-Test 100% E-Tested Other Service PCB Assembly, Quik Turn Order
High Light

0.8mm Rigid Flex PCB

,

0.5oz Rigid Flex PCB

,

0.5oz custom flexible pcb
Leave a Message
Product Description

0.8mm Single Layer Rigid Flex PCB Quick Turn 0.5oz Laser Prototyping



Rigid Flex PCB Flex PCB Manufacturing Flexible Rigid PCB Rigid Flex Printed Circuit Board Rigid Flex Board



Flexible rigid printed circuit board



PCB Type: Flexible Rigid PCB

PCB Layer: Single layer, double sided, multi-layer

Raw material: PI, FR4

Copper thickness: 0.5oz, 1oz, 2oz, 3oz, 4oz, 5oz

Smallest hole size: 0.15mm

Minimum line width:0.075mm/3mil

Minimum line spacing:0.075mm/3mil

Shape processing: Die stamping, cutting, laser prototyping

Solder mask: PI solder mask coverlay film or PET solder mask covelay film lamination( Black, Red, Yellow and Green, etc)

Surface finished: Immersion Tin, Plating Nickel Gold,  ENIG,OSP, Immersion Silver, etc(mostly ENIG)

Characters: Higer density, good heat dissipation, high heat resisting property...



PCB Layer Flexible rigid printed circuit board
PCB surface Immersion gold
PCB material FR-4+PI
PCB thickness 0.8mm
Copper thickness 0.5oz
Min. hole size 0.2mm
PCB profile

Routing
PCB solder mask Green, both side
PCB silkscreen White, both sides
E-test 100% E-Tested
Other service PCB assembly, quik turn order

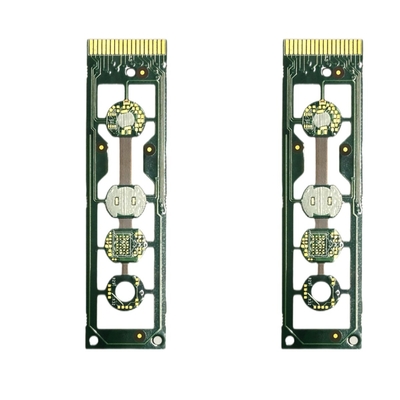

0.8mm Single Layer Rigid Flex PCB Quick Turn 0.5oz Laser Prototyping 0

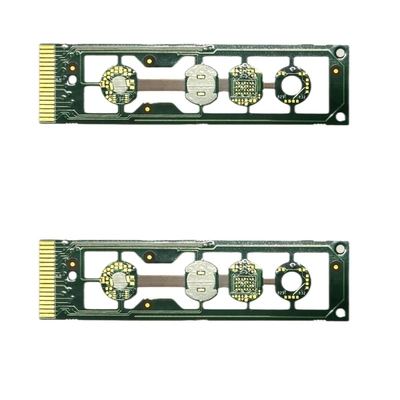

0.8mm Single Layer Rigid Flex PCB Quick Turn 0.5oz Laser Prototyping 1







FAQ:

1. What service can you provide?

PCB Manufacture,PCB Assembly,Rapid Prototype



2. How fast is your lead time?

Fastest 24H for 2L and 4L, 3WDs for HDI board.



3. How to get quick quotation?

Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)



sample:

PCB Layer 2L
PCB surface LF-HASL
PCB material FR4, TG170
Copper thickness 1/1oz finished
PCB solder mask Double side,green
PCB silkscreen Double side,White
Quantity 15pcs,15 working day



4.What payment terms do you have?

Wire Transfer(T/T)
