ENIG 2u Multilayer Rigid Flex PCB Assembly 3oz Base Double Layer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Type | 2L Rigid Flex Printed Circuit Board PCB | Surface Finished | ENIG 2u |
|---|---|---|---|
| Board Thickness | 1.0mm | Copper Thickness | 1/3oz Base |
| E-Test | 100% E-Tested | Other Service | PCB Assembly, Rapid Prototype PCB |
| High Light | ENIG 2u Rigid Flex PCB,3oz Multilayer Rigid Flex PCB,ENIG 2u 3oz pcb |
||
Product Description

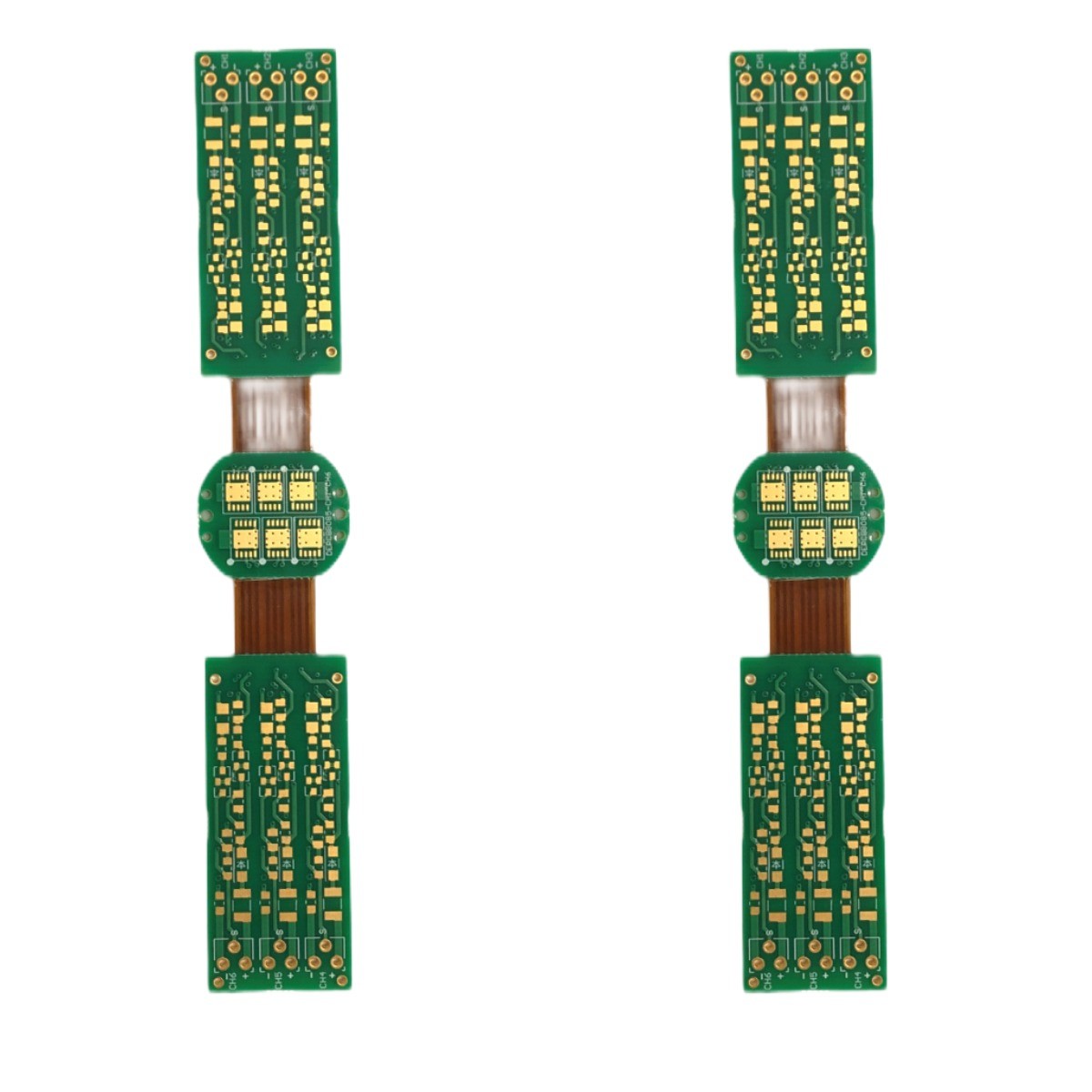

ENIG 2u Multilayer Rigid Flex PCB Assembly 3oz Base Double Layer
Rigid Flex PCB Flex Pcb Assembly Rigid Pcb Board Flex Board PCB Multi Layer PCB Flexible PCB Prototype
2L Rigid flex printed circuit board PCB
PCB Type: Rigid flex PCB
PCB Layer: 2L to 10L
PCB material: PI and FR4 materail
Copper thickness: 1/3oz~5oz
Minimum drilling size: 0.15mm
Smallest line width:0.075mm/3mil
Minimum line spacing:0.075mm/3mil
Shape processing: Die stamping, cutting, laser prototyping
Solder mask: PI solder mask coverlay film or PET solder mask covelay film lamination( Black, Red, Yellow and Green, etc)
Surface finished: OSP / Immersion Tin/LF-HASL/Au Plated Ni/ENIG(mostly ENIG)
Advantages: Weight reduction, more valuable component assembly and wiring space, reduced logistical complexity, simplification of assembly, considerably improved reliability of the entire PCB system, remarkable improvement of functional testability
Application: high-performance and high-speed applications, telecommunication devices, aerospace equipments,automotive devices,military equipment,consumer appliances, etc.
Rigid flexible PCB are rigid boards combining flexible board and rigid board technology in one PCB. It uses both rigid and flexible technologies, which make it owns the advantages of both rigid board and flex board. It is a tiny and compact circuit that can be as effective as bigger circuit,
and it provide higher component density and better quality control.
| PCB Layer | 2L Rigid flexible printed circuit board |
| PCB surface | ENIG 2u |
| PCB material | FR4+PI |
| PCB thickness | 1.0mm |
| Copper thickness | 1/3oz base |
| Min. hole size | 0.25mm |
| PCB profile |
Rout |
| PCB solder mask | Green solder mask color for both side |
| PCB silkscreen | White |
| E-test | 100% E-Tested |
| Other service | PCB assembly, rapid prototype PCB |
FAQ:
1. What service can you provide?
PCB Manufacture,PCB Assembly,Rapid Prototype
2. How fast is your lead time?
Fastest 24H for 2L and 4L, 3WDs for HDI board.
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
sample:
| PCB Layer | 2L |
| PCB surface | LF-HASL |
| PCB material | FR4, TG170 |
| Copper thickness | 1/1oz finished |
| PCB solder mask | Double side,green |
| PCB silkscreen | Double side,White |
| Quantity | 15pcs,15 working day |
4.What payment terms do you have?
Wire Transfer(T/T)
They can absorb much heat, and make for a tiny and compact circuit that can be as effective as bigger circuits.
