Double Layer Rigid Flex PCB Prototype 4mil Immersion Gold Lead Free
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Layer | 2L Flex Rigid Printed Circuit Board | Material | FR4 TG170&Polyimide |
|---|---|---|---|
| Surface Finished | Immersion Gold 2u" | Board Thickness | 0.8mm+0.4mm |
| Copper Thickness | 1/3oz Base Copper | Min. Trace/space | 4mil/4mil |
| Application | Telecommunication Product | IPC | Class 2 |
| High Light | 3oz Rigid Flex PCB,4mil Rigid Flex PCB,4mil double layer pcb |
||
Product Description

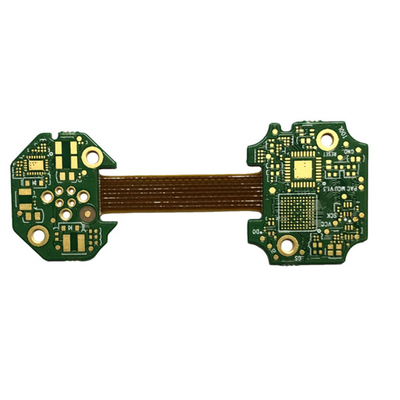

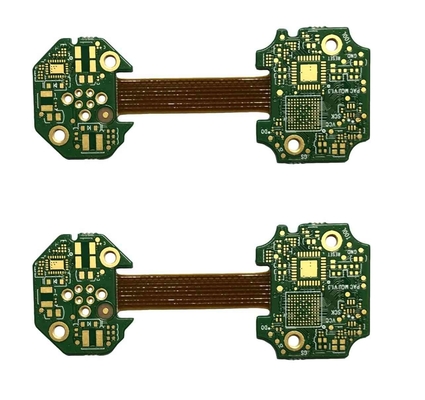

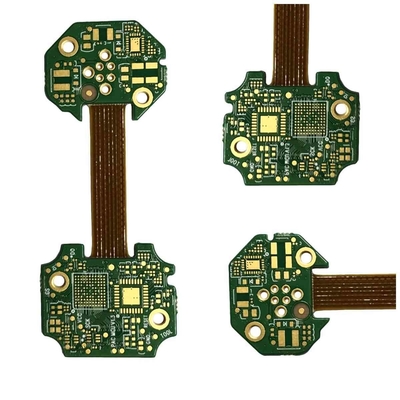

Double Layer Rigid Flex PCB Prototype 4mil Immersion Gold Lead Free
Rigid Flex PCB Custom PCB Flex Pcb Prototype Double Layer PCB Double Sided PCB Board Immersion Gold PCB
2L Flex Rigid printed circuit board
PCB Type: 2LRigid flex PCB
PCB Layer: Rigid 2L +Flex 2L
PCB material: FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled, Polyimide...
Surface finished: Immersion gold 3u"
Copper thickness: 1/3oz base copper
Smasllest drilling size: 0.2mm
smallest trace/space:4mil/4mil
Solder mask: Green, both sides
Legend: White, both sides
Application: telecommunication product
Rigid PCBs' applications range from small electrical devices to large aerospace, military and medical fields. And flex printed circuit boards are built of flexible substrate. They have lower thickness, lighter weight, and they are dynamically bendable, so they can save space They also have equally vast applications because of their excellent electrical and thermal performance.
Flex-rigid PCBS are boards which combile the technology of flexible board and rigid board. They consist of multiple layers of flexible circuit substrates attached to one or more rigid boards either externally or internally. Therefore they own the advantages of both rigid printed circuit boards and flex circuit boards. Rigid-Flex products provide reliable integration of multiple rigid printed circuit board assemblies into a single PCB module capable of supporting assembly, space/weight savings, and mechanical stability.
The advantages of rigid flex board includes:
1) ruducing products' weight
2) temperature resistance is excellent
3) being more flexible
4) with good reliability
| PCB Layer | Rigid 2L + Flex 2L |
| Surface treatment | Immersion gold 3u" |
| PCB material | FR4 TG170&Polyimide |
| PCB thickness | 0.8mm+0.4mm |
| Copper thickness | 1/3oz base |
| Min. hole size | 0.20mm |
| Min. trace/space |
4mil/4mil |
| PCB solder mask | Green, both sides |
| PCB silkscreen | White, both sides |
| E-test | 100% E-Tested |
| Application | telecommunication products |
FAQ:
1. What service can you provide?
PCB Manufacture,PCB Assembly,Rapid Prototype
2. How fast is your lead time?
Fastest 24H for 2L and 4L, 3WDs for HDI board.
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
sample:
| PCB Layer | 2L |
| PCB surface | LF-HASL |
| PCB material | FR4, TG170 |
| Copper thickness | 1/1oz finished |
| PCB solder mask | Double side,green |
| PCB silkscreen | Double side,White |
| Quantity | 15pcs,15 working day |
4.What payment terms do you have?
Wire Transfer(T/T)
