PCB Layer 4L Rigid Flexible Printed Circuit Board Material FR-4 +PI
Board Layer 4L Surface Finished Immersion Gold
Copper Thickness 1/1/1/1oz Finished Minimum Drilling Size 0.20mm
Min.PCB Track/gap 4mil/4mil Application Digital Products
High Light

1oz Rigid Flex PCB Design

,

1.6mm Rigid Flex PCB Design

,

1.6mm impedance control pcb

Leave a Message
Product Description

Impedance Control Customized Rigid Flex PCB Design 1.6mm 1oz Finished OEM ODM



Rigid Flex PCB Rigid Flex Circuit Manufacturer Flex Rigid Board Rigid Flex Board Rigid Flex Circuit Prototype

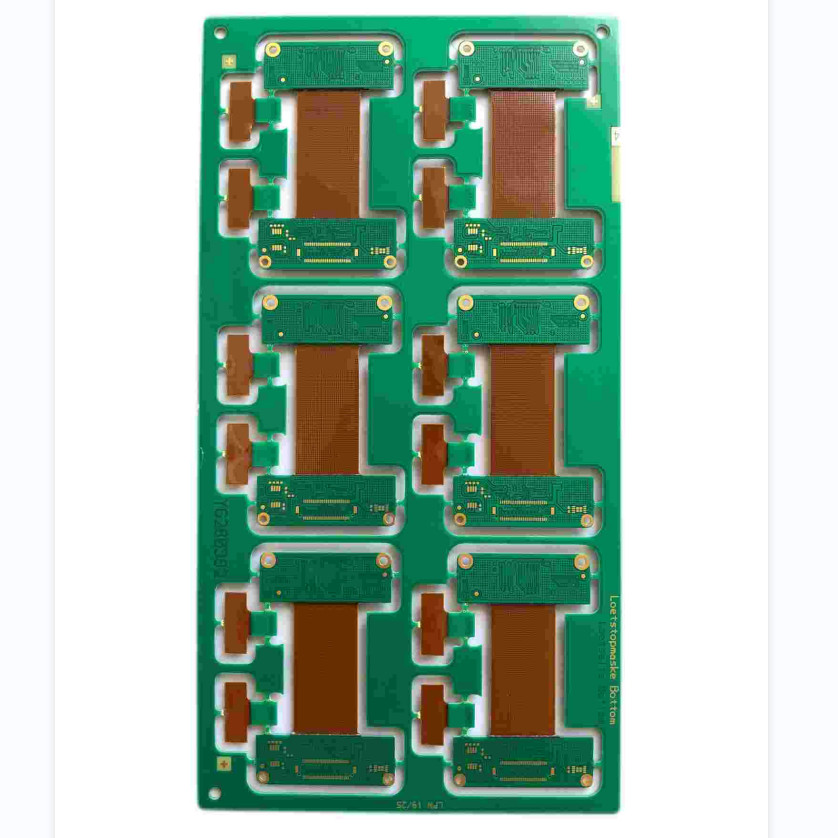

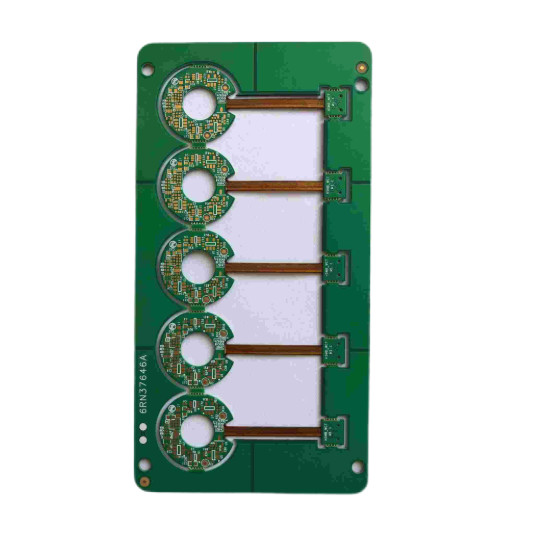

4L Rigid flexible printed circuit board​



Rigid PCBs' applications range from small electrical devices to large aerospace, military and medical fields. And flex printed circuit boards are built of flexible substrate. They have lower thickness, lighter weight, and they are dynamically bendable, so they can save space They also have equally vast applications because of their excellent electrical and thermal performance.



Flex-rigid PCBS are boards which combile the technology of flexible board and rigid board. They consist of multiple layers of flexible circuit substrates attached to one or more rigid boards either externally or internally. Therefore they own the advantages of both rigid printed circuit boards and flex circuit boards. Rigid-Flex products provide reliable integration of multiple rigid printed circuit board assemblies into a single PCB module capable of supporting assembly, space/weight savings, and mechanical stability.



The advantages of rigid flex board includes:

1) ruducing products' weight

2) temperature resistance is excellent

3) being more flexible

4) with good reliability



PCB Layer 4L PCB material FR4+PI
Copper thickness 1/1/1/1OZ PCB thickness 1.6MM
Min. hole size 0.20mm Min.PCB track/gap: 4/4mil
PCB solder mask Green PCB silkscreen White
PCB surface finished Immersion Gold PCB outline Routing
Application digital products
Special requirement: impedance control/FR-4+PI
