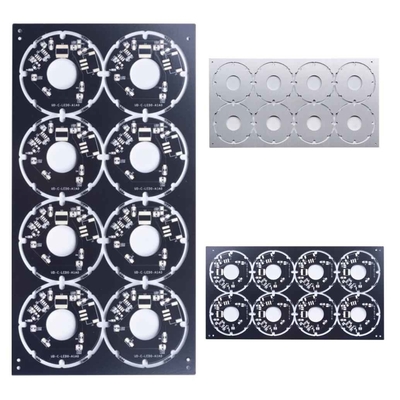

OSP Single Layer Pcb Board 1.6mm Led Aluminum Plate Pcb Board OEM ODM

OSP Single Layer Pcb Board 1.6mm Led Aluminum Plate Pcb Board OEM ODM

Single Sided PCB Aluminum PCB Board Aluminum Printed Circuit Board Metal PCB Aluminium Base PCB Aluminium Core PCB

Single Layer Aluminum Base board

HSX Circuit covers a total production area of 10,000 square meters, employs more than 350 workers, produces over 5,000 PCB types monthly. Its products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.

Advantages of Aluminum PCB:
1. Environmentally friendly. Aluminum is non-toxic and recyclable.
2. Heat dissipation. Aluminum can transfer heat away from vital components, thus minimizing the harmful effect it could have on the circuit board.
3. Higher durability: Aluminum provides strength and durability to a product, and it can reduce accidental breakage during manufacturing, handling, and everyday use.
4. Lightweight: Aluminum is a lightweight metal.

Layers:1-32layer, if the layer is 20L or mare than 20L, will need to review the board.
The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.
The Minimum panel size is 5 * 5mm.
Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...
PCB thickness capability is from 0.2~4.0mm, if thickness less than 0.2 mm, or more than 4 mm, will needs to review.
PCB copper thickness capability is H~5oz. If more than 5oz, will need to review it at first.
Bow and twist tolerance is 0.075%.
The minimum hole size is 0.15mm, if drilling size is smaller than 0.15mm, will need to confirm the board at first.
The max hole size is 6.0mm, if hole size more than 6mm, will need to use milling to enlarge holes.
The color of printed circuit board include green, matt green,blue, matt blue, black, matt black, yellow, red, white, and so on.
The color of silkscreen color: include white, black and so on.
Printed circuit board surfaces include HASL lead free, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger,etc.

FAQ:
Q1:Could you provide PCB Assembly services and components sourcing?
A: Yes, we could also provide components sourcing and PCB Assembly services as well as box build if request.

Q2:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran, Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India etc.

Q3:Will our PCB files be checked.
A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any inquires, we will contact you and solve the problems together.

Q4: Does our product will be tested before shipment.
A: Yes. We could provide Function Circuit Testing if you provide us the testing methods.

Q5:Which payment method do you accept?
A: Wire Transfer(T/T), Letter of Credit(L/C), or Paypal( Paypal is only for small value less than 500usd)
