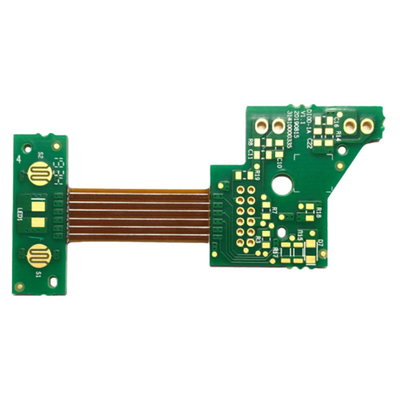

1.6mm FR4 Rigid Flex PCB 4L Immersion Gold For Digital Products
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Layer | Rigid Flex PCB | Material | FR4 +PI |
|---|---|---|---|
| Board Layer | 4L | Surface Finished | Immersion Gold |
| Board Thickness | 1.6mm | Copper Thickness | 1/1/1/1oz Finished |
| Min. Hole Size | 0.20mm | Min.PCB Track/gap | 4mil/4mil |
| Application | Digital Products | ||
| High Light | 1.6mm Rigid Flex PCB,FR4 Rigid Flex PCB,Immersion Gold rigid flex pcb board |
||
Product Description
1.6mm FR4 Rigid Flex PCB Immersion Gold Good Reliability
Rigid PCBs' applications range from small electrical devices to large aerospace, military and medical fields. And flex printed circuit boards are built of flexible substrate. They have lower thickness, lighter weight, and they are dynamically bendable, so they can save space They also have equally vast applications because of their excellent electrical and thermal performance.
The advantages of rigid flex board includes:
1) ruducing products' weight
2) temperature resistance is excellent
3) being more flexible
4) with good reliability
| PCB Layer | 4L | PCB material | FR4+PI |
| Copper thickness | 1/1/1/1OZ | PCB thickness | 1.6MM |
| Min. hole size | 0.20mm | Min.PCB track/gap: | 4/4mil |
| PCB solder mask | Red | PCB silkscreen | White |
| PCB surface finished | Immersion Gold | PCB outline | Routing |
| Application | digital products | ||
| Special requirement: | impedance control/FR-4+PI | ||
Advantage Of PCB Printed Circuit Board
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
Q1:What is your minimum order quantity?
A: No MOQ.The quantity will only affect the price. Please contact us for RFQ.
Q2:How will you usually ship the PCB?
A: Usually for small packages, we will ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
Q3:How about your PCB factory production capacity?
A: Our monthly production capacity is 50,000 square meter/month and 5000types/month.
Q4:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran, Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India etc.
Q5: Do you provide PCB Assembly services, too?
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
