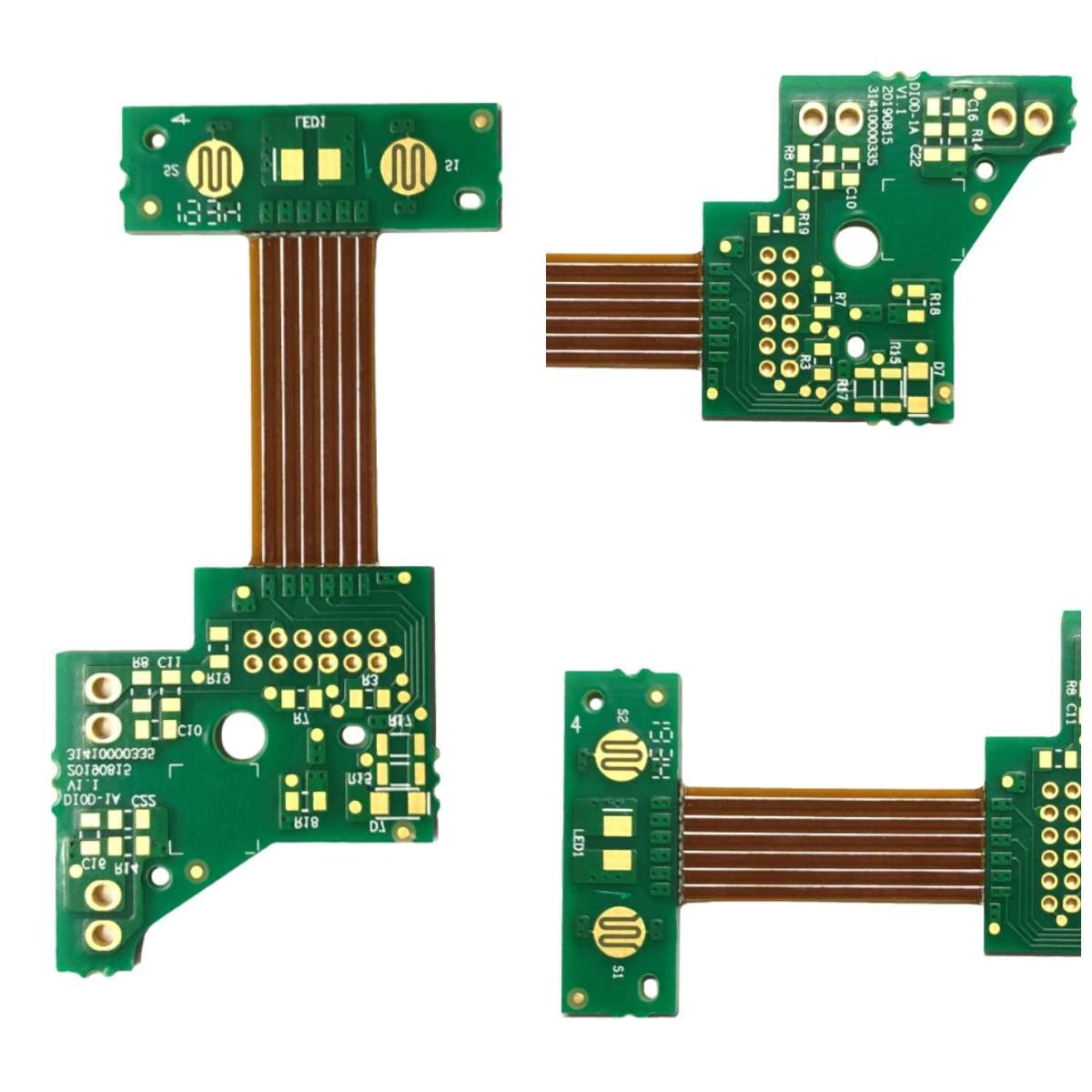

High Frequency Rigid Flex Circuit Board FR4 High TG Immersion Tin PCB
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Type | Rigid Flex PCB | Marterial | FR4, High TG, High Frequency, |
|---|---|---|---|
| Surface Finished | Immersion Tin, Immersion Silver, ENIG, ENEPIG, HASL, OSP, Hard Gold, Soft Gold | Board Thickness | 2.0mm |
| Min. Hole Size | 0.15mm | Other Service | PCB Assembly, Prototype Order |
| High Light | High TG Rigid Flex Circuit Board,FR4 Rigid Flex Circuit Board,Immersion Tin rigid printed circuit board |
||
Product Description
High Frequency Rigid Flex Circuit Board FR4 High TG Immersion Tin Pcb
Max layers: 32layer (≥20 layer needs to review)
Max finish panel size: 740* 500 MM(>600 MM needs to review)
PCB material: PI +FR4,FR4, Rogers,Halogen-free, High TG and heavy copper
PCB thickness: 0.2~4.0mm(＜0.2 mm,＞4 mm needs to review)
PCB copper thickness: H~5oz
Min. hole size: 0.15mm(＜0.15 mm needs to review)
Max hole size: 6.0mm(>6mm, use milling to enlarge holes)
HDI Min drill hole: 0.08-0.10MM
Min space in inner layer(one-sided): 4～8L(include): sample: 4 mil; small volume: 4.5 mil;
8~12L(include): sample: 5 mil; small volume: 5.5 mil
12～18L(include): sample: 6 mil; small volume: 6.5 mil
PCB solder mask: Green, Matt green,Blue, Matt blue, Black, Matt black, Yellow, Red, White,etc
PCB silkscreen: White, Black, etc
PCB surface: HASL lead free,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger
Application: Communications, Industry/comsumer Electronic.
| PCB Layer | Rigid Flex PCB(4L) |
| PCB surface | Immersion gold |
| PCB material | FR-4, TG170+PI |
| PCB thickness | 2.0mm |
| Min. hole size | 0.2mm |
| Min. line Spacing | 3mil(0.075mm) |
| PCB profile |
Routing and V-CUT |
| PCB solder mask | Green, both side |
| PCB silkscreen | White, both sides |
| PCB copper thickness | 2/2/2/2oz finished |
| Other service | PCB assembly, prototype order |
Quick turn PCB manufacturing (2layer 24hours, 4layer 48hours…. Fastest )
FR4 , Aluminum, Flexible, Rogers, Teflon PCB mass production
Multi-Layered PC Board (4-32 layers)
Low to high volume surface mount and through-hole PCB assembly
01005s, BGA, uBGA, CCGA CSP and Flip Chip
0.4mm Fine Pitch Devices
Prototype and pre-production electronic assembly
Surface Mount Technology (Paste and Epoxy)
Encapsulation and conformal coating of PCB assemblies
Lead-Free assembly
Intrusive reflow
Press fit
Wave/Selective wave soldering
Double/Single-sided reflow processing
Rework and repairs (Fine Pitch QFP, Area Array Packages)
Functional, electrical, and in-circuit testing
By managing the end-to-end production process, we enable our customers to concentrate on their core specialties.
