Multi Layer Flexible Rigid Printed Circuit Board Immersion Gold
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Flexible Rigid Printed Circuit Board | Surface Finished | Immersion Gold |
|---|---|---|---|
| Board Thickness | 0.8mm | Copper Thickness | 0.5oz |
| E-Test | 100% E-Tested | Other Service | PCB Assembly, Quik Turn Order |
| PCB Layer | Single Layer, Double Sided, Multi-layer | ||
| High Light | Rigid Printed Circuit Board 0.8mm,Immersion gold Flexible Rigid PCB,Multi Layer Flexible Rigid PCB |
||
Product Description

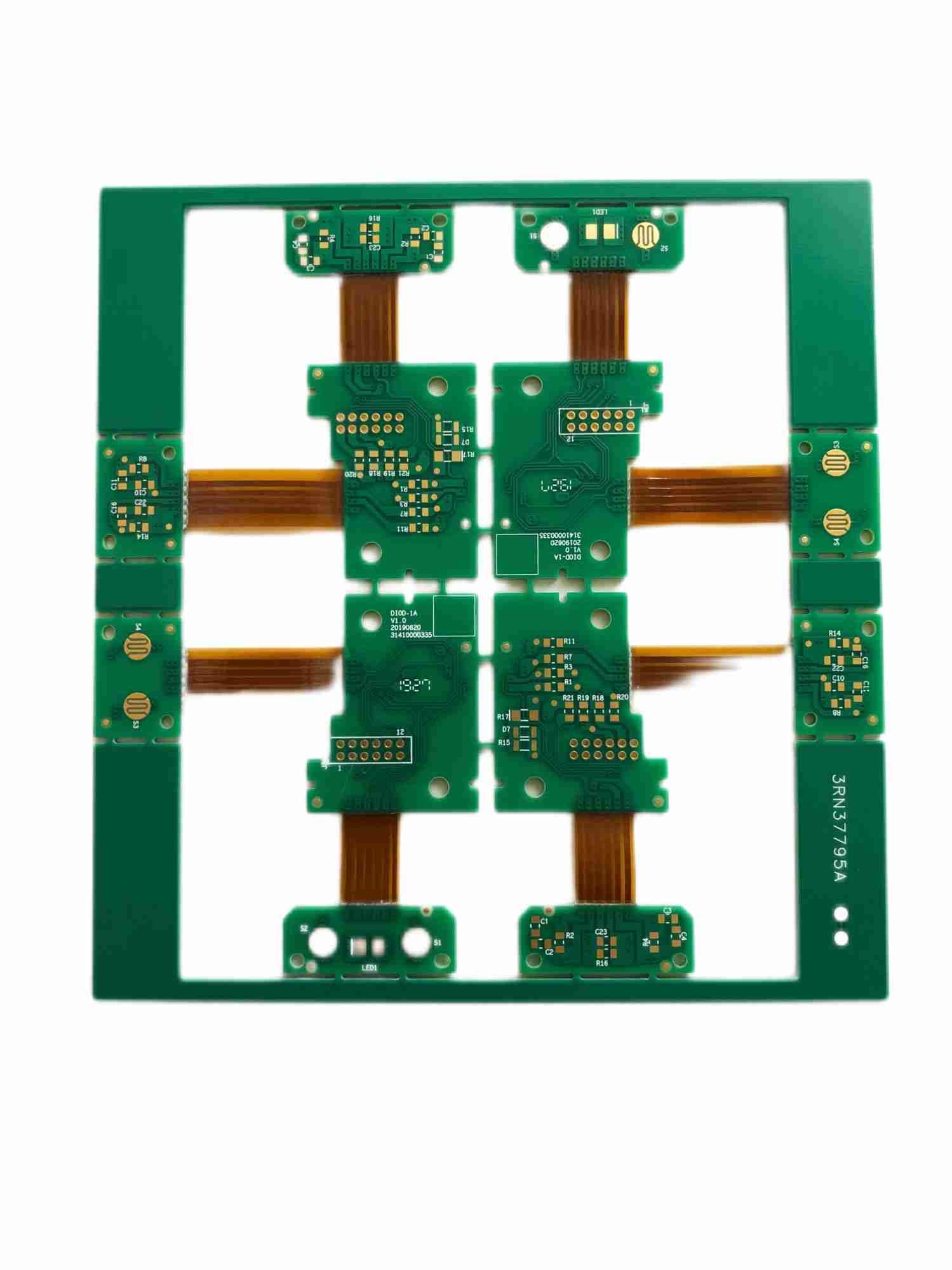

Multi Layer Flexible Rigid Printed Circuit Board Immersion Gold
Flexible rigid printed circuit board
PCB Type: Flexible Rigid PCB
PCB Layer: Single layer, double sided, multi-layer
Raw material: PI, FR4
Copper thickness: 0.5oz, 1oz, 2oz, 3oz, 4oz, 5oz
Smallest hole size: 0.15mm
Minimum line width:0.075mm/3mil
Minimum line spacing:0.075mm/3mil
Shape processing: Die stamping, cutting, laser prototyping
Solder mask: PI solder mask coverlay film or PET solder mask covelay film lamination( Black, Red, Yellow and Green, etc)
Surface finished: Immersion Tin, Plating Nickel Gold, ENIG,OSP, Immersion Silver, etc(mostly ENIG)
Characters: Higer density, good heat dissipation, high heat resisting property...
| PCB Layer | Flexible rigid printed circuit board |
| PCB surface | Immersion gold |
| PCB material | FR-4+PI |
| PCB thickness | 0.8mm |
| Copper thickness | 0.5oz |
| Min. hole size | 0.2mm |
| PCB profile |
Routing |
| PCB solder mask | Green, both side |
| PCB silkscreen | White, both sides |
| E-test | 100% E-Tested |
| Other service | PCB assembly, quik turn order |
Application of PCB Printed Circuit Board:
1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense
FAQ:
1. What service can you provide?
PCB Manufacture,PCB Assembly,Rapid Prototype
2. How fast is your lead time?
Fastest 24H for 2L and 4L, 3WDs for HDI board.
3. Are my PCB files safe when I submit them to you for manufacturing?
A: We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from your side, nor we'll share these files with any other 3rd parties. And we could sign NDA with client if necessary.
