FR4 TG170 4 Layer Rigid Flex PCB Fabrication Green Solder Mask
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Layer | 4L Rigid Flexible PCB | Material | FR4 TG170+PI |
|---|---|---|---|
| Board Layer | 4L | Surface Finished | Immersion Gold |
| Board Thickness | 2.0mm | Copper Thickness | 1/1/1/1/1/1oz Finished |
| Min. Hole Size | 0.15mm | Min.PCB Track/gap | 3mil |
| Solder Mask | Green | Application | Science And Education |
| High Light | 4 Layer Rigid Flex PCB,FR4 4 layer flex pcb,TG170 4 layer flex pcb |
||
Product Description

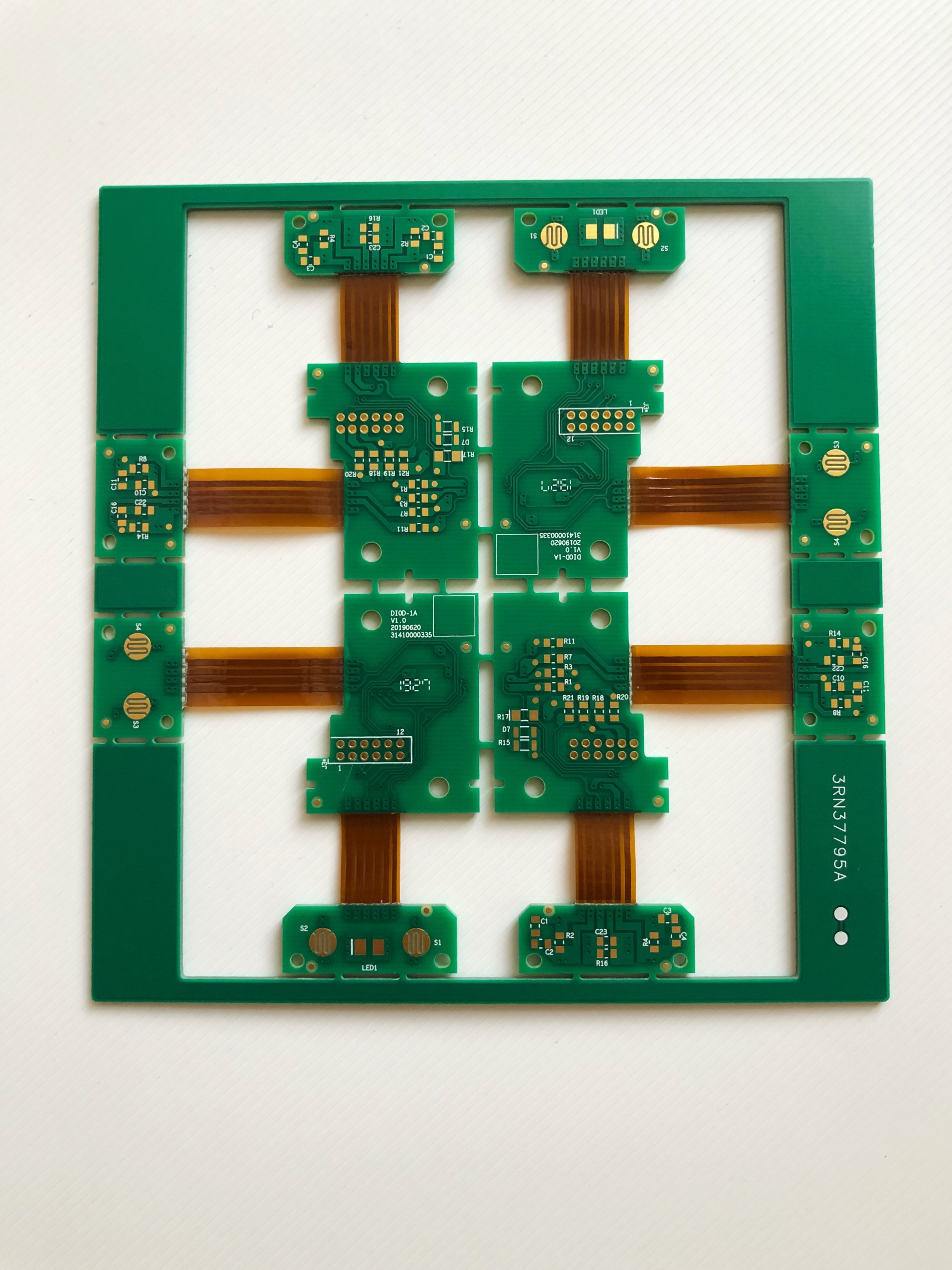

FR4 TG170 4 Layer Rigid Flex PCB Fabrication Green Solder Mask
4L Rigid FlexIble PCB
Flex-rigid PCBS are boards which combile the technology of flexible board and rigid board. They consist of multiple layers of flexible circuit substrates attached to one or more rigid boards either externally or internally. Therefore they own the advantages of both rigid printed circuit boards and flex circuit boards. Rigid-Flex products provide reliable integration of multiple rigid printed circuit board assemblies into a single PCB module capable of supporting assembly, space/weight savings, and mechanical stability.
| PCB Layer | 4L | PCB material | FR4 S1000-2M TG170+PI |
| Copper thickness | 1/1/1/1OZ | PCB thickness | 2.0MM |
| Min. hole size | 0.15mm | Min.PCB track/gap: | 3/3mil |
| PCB solder mask | Green | PCB silkscreen | White |
| PCB surface finished | Immersion Gold | PCB outline | Routing |
| Application | science and education | ||
| Special requirement: | small line space and gap:3/3mil/min. via hole size 0.15mm/impedance control//0.25mm BGA/FR-4+PI | ||
Features and benefits
1. High TG industrial standard material shows excellent thermal reliability;
2. Immersion gold ensure excellent wetting during component soldering and avoid copper corrosion;
3. In house, engineering design prevents problems from occurring in pre-production;
4. ISO9001, ISO14001, IATF16949, ISO13485, UL Certified;
5. Customer complaint rate: <1%
6. Delivery on time: >98%
7. Prototype PCB capability to Volume Production capability;
8. Multilayer and Any Layer HDI PCBs;
9. More than 18+ years of PCB experience.
FAQ:
Q1:Could you provide PCB Assembly services and components sourcing?
A: Yes, we could also provide components sourcing and PCB Assembly services as well as box build if request.
Q2:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran, Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India etc.
Q3:Are my PCB files safe when I submit them to you for manufacturing?
A: We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from your side, nor we'll share these files with any other 3rd parties. And we could sign NDA with client if necessary.
Q4:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
